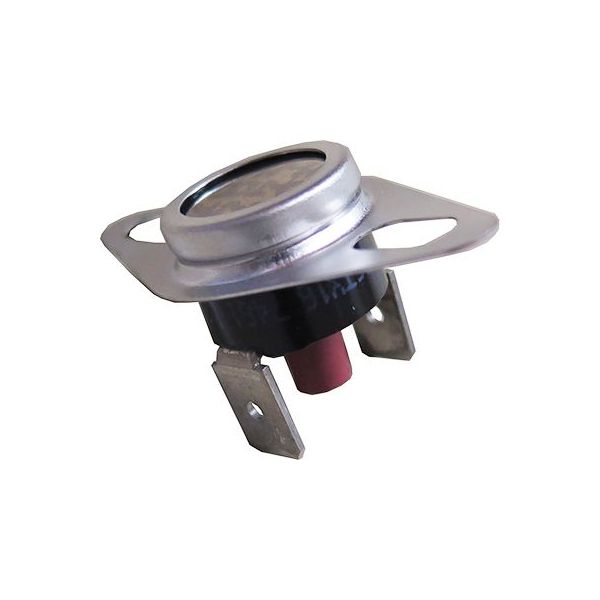

Armstrong Furnace R100811-05 M/R Limit Switch L205F

Be the first to review this product
Special Price $13.08 Regular Price $17.00
In stock
SKU
R100811-05
Armstrong Furnace R100811-05 Manual Reset Limit Switch is a temperature safety control that is used to check the amount of heat in furnace assemblies. The electrical circuit is interrupted by a temperature-sensitive switch with a calibration of L205F, which shuts off power to other components of HVAC system when the temperature around the switch is above the set point. The manual reset mode makes the switch physically reset after reaching a high-temperature state before normal operation can be resumed. It is installed in the furnace heat exchanger or airflow compartment and offers thermal monitoring and circuit breakage during the heating process.
Add to Wish List
HVAC Controls & Electrical, Safety & Limit Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/r/1/r100811-05_armstrong-furnace_partshnc.jpg
Manufacturer Name: Armstrong Furnace
Product Number: R100811-05
OEM Part Number: R100811-05
Product Description: Limi Control Stilt
Weight:0.02lbs/9.07g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Armstrong Furnace R100811-05 M/R Limit Switch L205F
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Armstrong Furnace R100811-05 Limit Switch?

Regularly inspect the limit switch for dirt, corrosion, or loose connections. Clean contacts carefully and ensure proper alignment. Check electrical connections and test functionality to prevent misfires or operational errors. Always disconnect power before maintenance.

What are common issues with the Armstrong Furnace R100811-05 Limit Switch?

  • Switch fails to actuate properly.
  • Erratic signal output or inconsistent triggering.
  • Contact pitting or corrosion.
  • Loose or damaged wiring causing intermittent operation.

Installation Steps

Step 1: Turn off electrical power to the furnace and verify no voltage is present to avoid shock.

Step 2: Remove the access panel to reach the existing limit switch assembly.

Step 3: Disconnect the wiring from the old limit switch, labeling wires to ensure correct reconnection.

Step 4: Remove the faulty switch and install the new limit switch in the same mounting position.

Step 5: Reconnect wiring securely to the correct terminals.

Step 6: Restore power and test operation, ensuring proper high-limit safety shutdown function.
