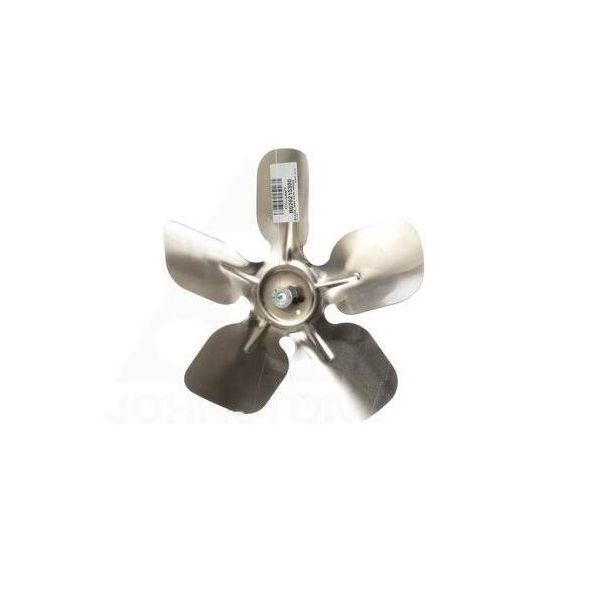

Heatcraft Refrigeration R026215300 10" 5-Blade Fan CCW 40° Pitch
Specifications
- Type: Fan Blade
- Diameter: 10"
- Number of Blades: 5
- Pitch: 40°
- Rotation: Counter-Clockwise
Loyalty ProgramRefrigeration systems use fan blades to move air through designated sections of an air-moving assembly. The Heatcraft Refrigeration R026215300 is a 10-inch fan blade designed with five blades, a 40° pitch, and counter-clockwise rotation. Its angled blades convert rotational movement into airflow, supporting the air circulation required by the connected refrigeration system.
Blade Pitch and Air Movement:
The 40° blade pitch defines the angle at which each blade interacts with the surrounding air during rotation. This angle influences how the blade displaces air as the connected fan assembly operates. The pitch is an important design characteristic when matching a replacement blade to the required configuration.
Rotation and Blade Configuration:
The counter-clockwise rotation specification identifies the intended rotational direction of the fan blade. The blade's rotation, diameter, and bore must correspond to the connected assembly's requirements for proper installation and operation.
Replacement Guidelines:
Replacement may be appropriate when the fan blade is bent, cracked, or damaged in a way that affects its intended operation. Before ordering, compare the existing part number and the blade's verified physical characteristics with the required replacement specifications.
Common Failure Symptoms:
Equipment Compatibility:
The Heatcraft Refrigeration R026215300 is a fan blade specified for refrigeration applications, with a 10-inch diameter, five-blade design, 40° pitch, counter-clockwise rotation, and 5/16-inch bore. Verify the refrigeration equipment's required part number and blade configuration before selecting a replacement, as specific compatible equipment models have not been confirmed.
Technical Specifications:
Product Identification:
Brand: Heatcraft Refrigeration
Part Number: R026215300
Product Type: Fan Blade
Mechanical:
Diameter: 10 inches
Number of Blades: 5
Blade Pitch: 40°
Rotation: Counter-Clockwise (CCW)
Step1: Turn off the unit and disconnect power to prevent electrical hazards.
Step2: Remove the old fan blade and clean the motor shaft.
Step3: Align the new fan on the motor shaft with the correct rotation.
Step4: Secure the fan using the provided set screw or mounting hardware.
Step5: Check that the fan spins freely without obstruction.
Step6: Reconnect power and test the fan for proper operation.
