main product photo

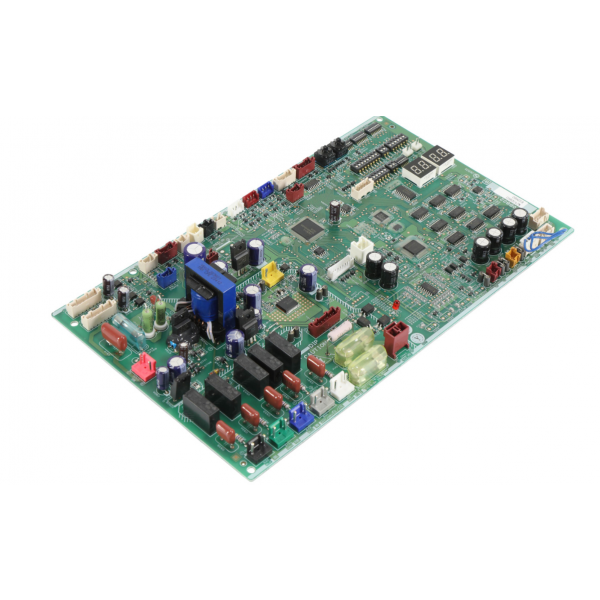

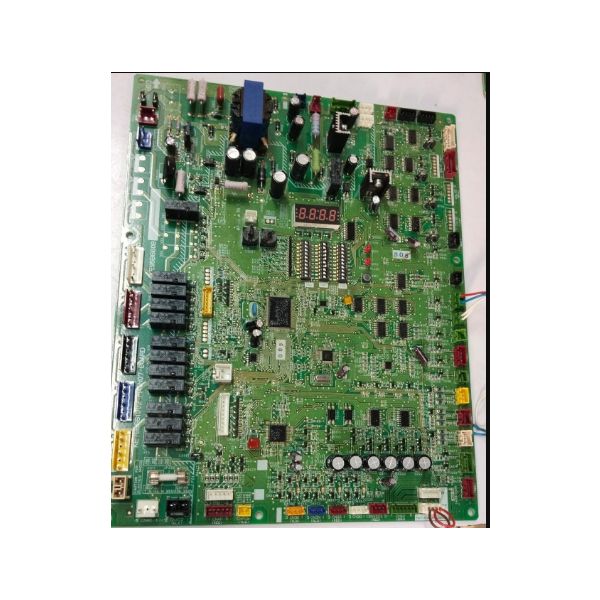

Mitsubishi Electric R01M17350 Control Board

Be the first to review this product
Special Price $539.71 Regular Price $599.08
In stock
SKU
R01M17350
The Mitsubishi Electric R01M17350 Control Board is an essential part of HVAC systems, which is mainly designed as an Industrial Control Board to manage and coordinate several operations. This board is made of FR4 fire-resistant fiberglass and it is suitable for use in a number of industrial applications. It functions perfectly with 120VAC and 240VAC voltages and enables the user to control critical HVAC activities including; temperature control, fan speed, and system check. It is translates instructions from sensors and users to control heating, ventilation, and air conditioning equipment to perform optimally.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/r/0/r01m17350.png

Specifications

  • Weight:0.99lbs
  • Material:FR4 fire-resistant fiberglass
  • Type: Industrial Control Board
  • Voltage:120VAC or 240VAC
Manufacturer Name: Mitsubishi Electric
Product Number: R01M17350
OEM Part Number: R01M17350
Product Description: Control Board
Weight:0.99lbs/449.06g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Mitsubishi Electric R01M17350 Control Board
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Mitsubishi Electric R01M17350 Control Board?

Regularly inspect the control board for dust buildup and moisture ingress, ensuring the enclosure remains sealed. Check wiring connections for looseness or corrosion and tighten if needed.

What are common issues with the Mitsubishi Electric R01M17350 Control Board?

  • Power supply failure or intermittent startup.
  • Communication errors with HVAC system components.
  • Overheating due to electrical pressure.
  • Relay or component failure causing unresponsive operation.
  • Faulty sensor signal processing or input errors.

Installation Steps

Step 1: Turn off power at breaker, ensure unit is fully isolated, and verify no voltage for safety.

Step 2: Open HVAC/compatible unit panel, remove cover screws carefully, and document wiring.

Step 3: Disconnect old control board carefully, labeling each connector.

Step 4: Mount new control board securely in same position, avoiding static discharge.

Step 5: Reconnect wiring per diagram, ensuring tight fit and match wiring diagram exactly.

Step 6: Restore power and test system operation, observe startup sequence, check for error codes.
