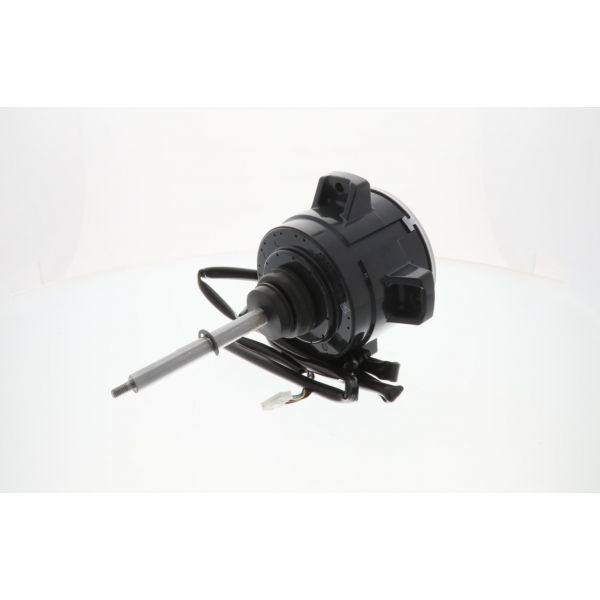

Mitsubishi Electric R01E70221 Condenser Motor

Rating:
5 5 1
1  Review Add Your Review
Special Price $265.70 Regular Price $294.92
In stock
SKU
R01E70221
The Mitsubishi Electric R01E70221 Condenser Motor is a robust product designed mainly for HVAC systems condenser fan motors. Its main function as a fan motor is to turn the fan that blows air over the coils of the condenser. The motor performance is optimized and the overall efficiency of the HVAC system is enhanced through the cooling of the condenser coils. In most HVAC applications including air conditioners, heat pumps, and refrigeration systems, the condenser motor is usually essential. It also has long-lasting features due to the material used and the way it was built.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/r/0/r01e70221-mitsubishi-electric_partshnc.jpg

Specifications

  • Weight: 6.42lbs
  • Type: Condenser Fan Motor
  • Material:mertal,steel and copper

A condenser assembly relies on a dedicated drive source to operate its outdoor air-moving component. The Mitsubishi Electric R01E70221 supplies the mechanical input needed by the attached condenser fan. This allows the fan to circulate air around the outdoor coil and support the unit's heat-transfer process.

Electrical Input and Mechanical Conversion:
The motor receives electrical input and converts it into mechanical energy through its internal operating components. This process produces rotation at the motor shaft, creating the mechanical movement required to operate the connected condenser fan. The electrical supply therefore becomes the source of the fan's rotational movement.

Shaft Rotation and Condenser Airflow:
The rotating shaft turns the attached condenser fan, causing the fan blades to move air around the outdoor coil. This airflow supports heat transfer within the condensing unit. The motor supplies the rotation, while the fan converts that rotation into the air movement required by the outdoor section.

Replacement Guidelines:
Replacement may be appropriate when the Condenser Motor develops irregular shaft movement or shows physical deterioration that affects fan operation. Before ordering, compare the existing R01E70221 part number with the applicable equipment requirements and verified specifications.

Common Signs of Wear:

  • Motor operates intermittently
  • Fan rotation becomes irregular
  • Excessive vibration during operation
  • Motor becomes unusually hot
  • Fan speed becomes inconsistent
  • Visible motor damage or deterioration

Equipment Compatibility:
The condenser motor is intended for compatible Mitsubishi Electric HVAC equipment requiring the corresponding motor configuration. Before purchasing, compare the existing motor's part number, electrical requirements, motor specifications, and physical configuration with the applicable equipment requirements.

Technical Specifications:
Brand: Mitsubishi Electric
Part Number: R01E70221
Product Type: Condenser Motor

Reviews 1
Write Your Own Review
You're reviewing:Mitsubishi Electric R01E70221 Condenser Motor
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Mitsubishi Electric R01E70221 Condenser Motor?

Regularly inspect the motor for dust and debris buildup and clean using a dry cloth or compressed air. Lubricate bearings as recommended, check electrical connections, and ensure proper ventilation. Maintenance ensures optimal performance and prevents overheating or operational issues.

What are common issues with the Mitsubishi Electric R01E70221 Condenser Motor?

  • Overheating during prolonged operation.
  • Unusual vibrations or noise.
  • Motor failing to start or inconsistent rotation.
  • Electrical connection faults or short circuits.

What role does the R01E70221 Condenser Motor perform?

The motor provides the mechanical rotation required by the connected condenser fan. This enables the fan to circulate air around the outdoor coil.

How does the motor operate the condenser fan?

Electrical energy is converted into mechanical shaft rotation. The rotating shaft then turns the attached fan to produce the required airflow.

Where is the R01E70221 used?

The R01E70221 is intended for compatible Mitsubishi Electric HVAC equipment requiring this condenser motor configuration.

What happens when the motor's shaft rotates?

Shaft rotation drives the condenser fan, allowing it to move air around the outdoor coil. This airflow supports heat transfer within the condensing unit.

What should be checked before selecting this motor?

Compare the existing part number, electrical requirements, motor specifications, and physical configuration with the applicable equipment requirements and verified product information. .

Installation Steps

Step 1: Turn off power to the HVAC unit before starting.

Step 2: Remove the old condenser motor by disconnecting wires and unfastening mounting brackets.

Step 3: Place the new motor in the bracket, ensuring proper alignment with the fan.

Step 4: Secure the motor with screws and reconnect electrical wiring according to the unit diagram.

Step 5: Manually spin the fan to confirm smooth rotation.

Step 6: Restore power and test the fan operation.
