Resideo Q345A1305 Intermittent Pilot Burner & Ignitor B-Bracket

Special Price $63.54 Regular Price $73.07
In stock
SKU
Q345A1305

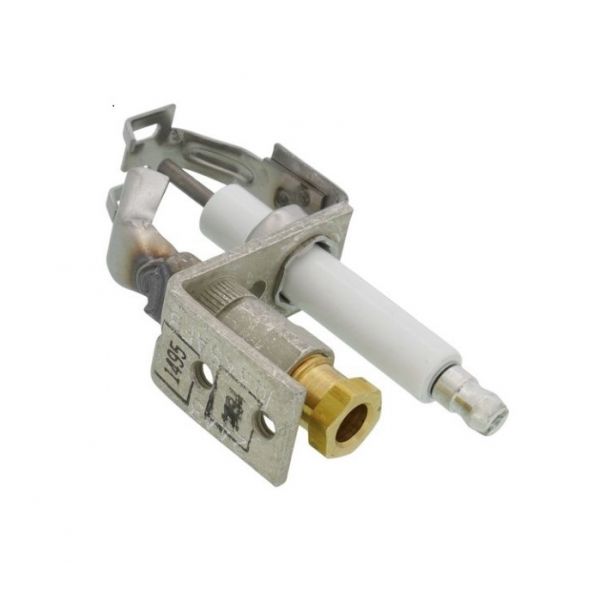

The Resideo Q345A1305 Intermittent Pilot Burner & Ignitor with B-Bracket is a tough ignition part that works in gas-fired HVAC systems, furnaces, boilers, and water heaters. The burner and ignitor unit work together to light the pilot with a spark then ignite the main burner only when heat is needed helping to save gas and keep things safe. This product is made for intermittent pilot systems and provide steady performance in homes and light commercial buildings. The B-bracket mounting makes installation both safe and simple, and the integrated design assists with easy maintenance and replacement, so it’s a reliable and efficient choice for today’s HVAC systems.
https://www.partshnc.com/media/catalog/product/q/3/q345a1305.jpg

Specifications

  • Type: Intermittent Pilot Burner
  • Application: Pilot Burner for Intermittent Pilot Applications
  • Mounting Bracket: StyleBracket Style B
  • Fitting Diameter: 1/4"
  • Fitting Length: 0.78"
  • Product Length: 1.66"
  • Product Width: 0.69"

Product Overview:
Supports pilot ignition in gas-fired heating equipment by combining a pilot burner with a bracket for positioning the ignitor assembly. The Resideo Q345A1305 Intermittent Pilot Burner & Ignitor Bracket is an OEM ignition component designed for equipment using an intermittent pilot ignition system. The burner directs pilot gas toward the ignition point to establish the pilot flame, while the bracket maintains the ignitor's position relative to the burner and supports the associated grounding arrangement.

Flame Formation:
Directs the pilot gas through the burner outlet to create the required combustion pattern at the ignition point. The burner geometry manages the discharge of the pilot mixture and establishes a localized flame structure suitable for the appliance's ignition process. This function focuses specifically on the formation and shape of the pilot flame at the burner outlet.

Igniter Grounding:
Maintains the ignitor's designated physical relationship with the burner assembly while providing the grounding path associated with the mounting arrangement. The bracket keeps the ignitor securely positioned relative to the ignition point, supporting the electrical conditions required during ignition. This function focuses on the bracket's mounting and grounding role rather than flame creation.

Replacement Guidelines:
Replace the Resideo Q345A1305 Pilot Burner & Ignitor Bracket when the existing unit has deteriorated, no longer provides reliable pilot flame sensing, or fails to support proper ignitor positioning. Resume the assembly during applicable maintenance or ignition component replacement to restore pilot operation and help prevent ignition failure.

Common Failure Symptoms:

  • Pilot flame becomes difficult to establish consistently.
  • Ignition response varies during repeated startup attempts.
  • Burner alignment appears displaced from its intended position.
  • Bracket shows visible bending or structural damage.
  • Ignition components exhibit irregular positioning.

Equipment Compatibility:
The Resideo Q345A1305 Pilot Burner & Ignitor Bracket is intended for gas-fired heating equipment using an intermittent pilot ignition system. Its application depends on the associated ignition control, ignitor, and flame-sensing arrangement. Verify the Q345A1305 equipment model and manufacturer's parts documentation before ordering.

Technical Specifications:
Brand: Resideo
SKU: Q345A1305
Product Type: Intermittent Pilot Burner & Ignitor Bracket

Write Your Own Review
You're reviewing:Resideo Q345A1305 Intermittent Pilot Burner & Ignitor B-Bracket
Your Rating
Customer Questions
What is the Honeywell Q345A1305 pilot burner assembly used for?

The Q345A1305 combines a pilot burner and ignitor bracket for use in an applicable intermittent pilot ignition system.

What should I verify before selecting the Q345A1305 assembly?

Check the existing part number, heating equipment model, pilot burner configuration, and ignition system requirements against the manufacturer's documentation.

What problems may indicate that a pilot burner assembly needs inspection?

Failure to establish a pilot flame or recurring ignition problems may indicate an issue with the pilot assembly or another part of the ignition system.

When should the Q345A1305 pilot burner assembly be replaced?

Consider replacement if the assembly is damaged or cannot perform its intended ignition function after appropriate diagnosis.

What maintenance should be performed on a pilot burner assembly?

During scheduled servicing, have a qualified technician inspect the burner, ignitor, mounting bracket, and associated connections for contamination, wear, or damage.
