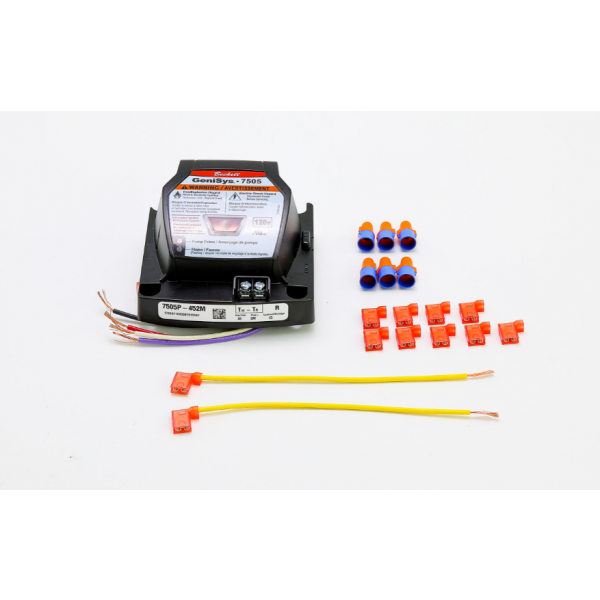

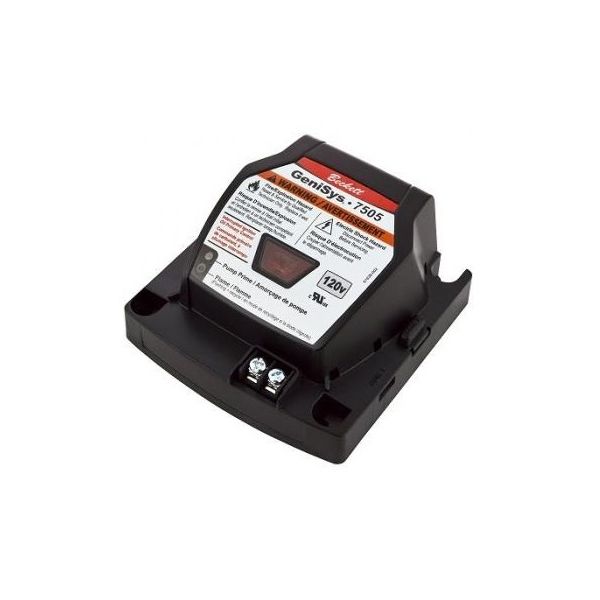

Beckett Igniter 7505P452MIU Primary Beckett 120V

Be the first to review this product
Special Price $138.41 Regular Price $159.18
In stock
SKU
7505P452MIU
The Beckett Igniter 7505P452MIU Primary Igniter 120V is used to produce the needed electric spark to start combustion in heating equipment, that uses fuel in HVAC systems. Using a 120-volt power supply, the igniter creates an electric charge to help the burner electrodes ignite the fuel and air mixture. It is wired to the electrical terminals, which connect it to the burner control circuit that initiates the ignition sequence during the startup of equipment. It is located inside the burner control assembly, source needed to initiate and maintain the operation of the burner flames.
Add to Wish List
Blower Motors, Heating & Furnace Parts
Manufacturer:
https://www.partshnc.com/media/catalog/product/7/5/7505p452miu.jpg
Manufacturer Name: Beckett Igniter
Product Number: 7505P452MIU
OEM Part Number: 7505P452MIU
Product Description: Primary Beckett 120V
Weight:1.14lbs/517.09g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Beckett Igniter 7505P452MIU Primary Beckett 120V
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Beckett Igniter 7505P452MIU Control?

Inspect electrical terminals, wiring connections, and control housing regularly for signs of corrosion, overheating, or loose connections. Verify proper operation of the ignition and burner control sequence during routine service. Keeping the control area clean helps prevent electrical faults and inaccurate burner operation.

What are common issues with the Beckett Igniter 7505P452MIU Control?

  • Failure to initiate burner startup sequence.
  • Intermittent ignition or burner lockout conditions.
  • No voltage output to motor, igniter, or solenoid terminals.
  • Faulty flame detection causing shutdowns.
  • Control board failure resulting in loss of burner operation.

Installation Steps

Step 1: Turn off electrical power to the burner and verify the circuit is de-energized.

Step 2: Remove the existing control and label all wiring connections before disconnecting.

Step 3: Mount the new control on the burner junction box or proper mounting location.

Step 4: Connect thermostat, cad cell flame sensor, burner motor, igniter, and valve wiring according to the wiring diagram.

Step 5: Secure all wiring and inspect connections for proper termination.

Step 6: Restore power and verify burner startup, flame sensing, and lockout functions.
