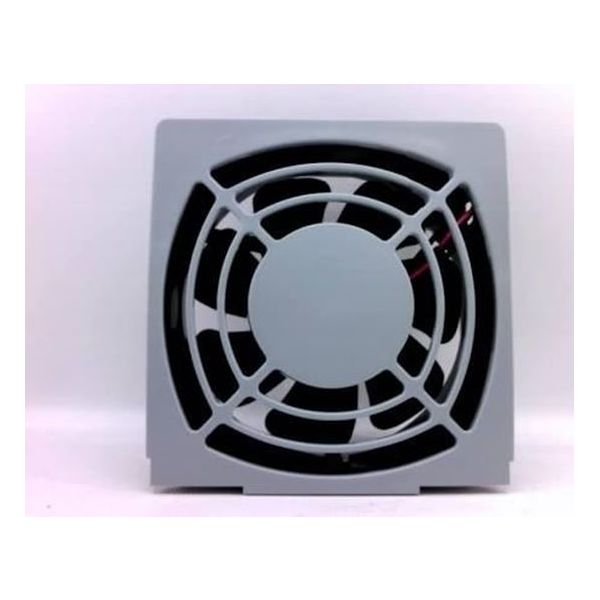

The Cutler Hammer-Eaton PP01061 Variable Frequency Drive Cooling Fan is an element of the system that controls the airflow to provide thermal cooling of the speed controllers used in HVAC Systems. It is applied in commercial and industrial drive installations to regulate the heat in the drive enclosure is a major aspect of reliable operation. This cooling fan operates in the system to manage the temperature through circulating air over heat sink surfaces and is a vital component that assists in controlling the internal environment and aids in maintaining and constant drive operation.
The Cutler Hammer-Eaton PP01061 is a main DC cooling fan designed for use in the Eaton 9000X series Uninterruptible Power Supply (UPS) systems. It is necessary to maintain the proper operating temperatures and prevent overheating, which ensures the consistent and faultless operation of your key equipment.It's a crucial component for ensuring proper cooling and operation of the UPS, which protects your critical equipment from power disruptions.
Function:
Provides forced air circulation inside the UPS, drawing cool air in and expelling hot air out.
Helps regulate internal temperature, preventing component overheating and potential damage.
Maintains optimal operating conditions for the UPS, ensuring efficient performance and extending its lifespan.
Key Features:
10-inch diameter: Provides substantial air flow for effective cooling.
3-inch depth: Fits snugly within the UPS chassis, maximizing space utilization.
7-inch mounting frame: Ensures secure and stable installation within the UPS.
DC powered: eliminates the need for an external AC adapter by connecting directly to the internal DC power source of the UPS.
Durable construction: constructed with premium materials for enduring performance.
UL Listed: Meets stringent safety standards for use in electronic equipment.
Applications:
Primarily used in Eaton 9000X series UPS systems.
Suitable for other applications requiring efficient DC Vfd Cooling Fan PP01061, such as server cabinets, networking equipment, and industrial enclosures.
Signs of a Faulty PP01061 Vfd Cooling Fan Cutler Hammer-Eaton:
A malfunctioning Cutler Hammer-Eaton PP01061 can impact the performance and lifespan of your UPS, potentially leading to data loss and downtime. Here are some red flags to watch out for:
Overheating:
Increased internal temperature of the UPS: This is the primary sign of a faulty fan, as it's not effectively removing heat. Monitor the UPS temperature readings or check for warning messages.
Hot air discharge: Feel for excessive hot air coming out of the UPS vents, even when the system is not under heavy load.
Fan Performance Issues:
Reduced airflow: If the fan is not spinning at its usual speed or not drawing in enough air, it won't provide adequate Vfd Cooling Fan PP01061.
Unusual noises: Listen for grinding, rattling, or excessive vibration coming from the fan, indicating potential bearing wear or debris obstruction.
Complete fan failure: The fan may stop spinning altogether, leading to immediate overheating concerns.
UPS Performance:
Frequent shutdowns or reboots: The UPS might automatically shut down to protect itself from overheating if the fan fails.
Reduced performance and efficiency: The UPS might not operate at its peak capacity due to thermal constraints.
Data loss or corruption: In extreme cases, overheating can damage UPS components and lead to data loss.
Additional Indicators:
Dust accumulation: Clogged fan blades can hinder airflow, so check for dust buildup and clean the fan regularly.
Physical damage: Look for visible damage to the fan blades or housing, which can affect its performance.
