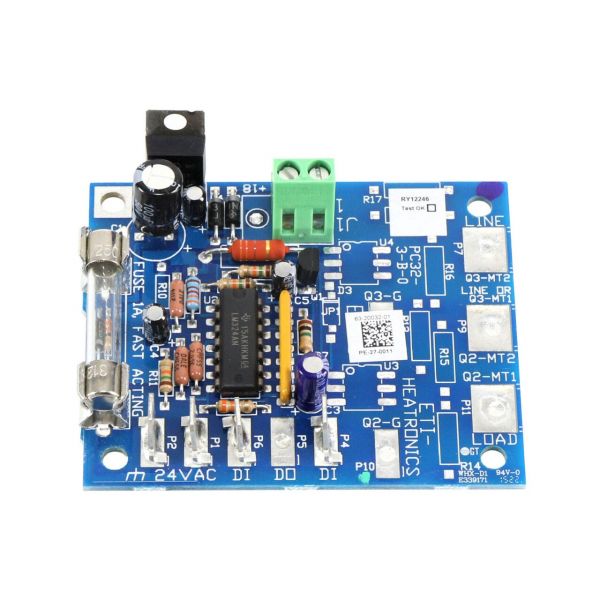

The Enviro-tec PE-27-0011 Solid State Relay Interface Proportional is a regulation component that is used to control electrical loads in response to proportional control signals. It is a 2-10 VDC input to a controlled output that can be used for heating or cooling operations in equipment. This is used in the air handling and fan coil units where it is necessary to have precise control of electrical components. In HVAC systems, it is essential in the coordination of control signals with system operation to aid proper output modulation, constant performance and uniform temperature control throughout the interconnected components.
What maintenance is required for the Enviro-tec PE-27-0011 Solid State Relay Interface?
Regularly inspect the relay interface for dust, moisture, or corrosion. Ensure all wiring connections are secure and free of damage. Check for proper voltage input and output during operation, and always disconnect power before performing maintenance.
What are common issues with the Enviro-tec PE-27-0011 Solid State Relay Interface?
Inaccurate voltage control output.
Intermittent or no switching response.
Loose or corroded wiring connections.
Failure to interface properly with proportional devices.
Installation Steps
Step1: Turn off power and confirm the control circuit is de-energized before installation.
Step2: Mount the relay interface in a dry enclosure with proper ventilation and secure wiring access.
Step3: Connect the 2-10 VDC control signal and load wires to the correct terminals per the wiring diagram.
Step4: Restore power, calibrate the signal range, and test output response to ensure proper operation.
