main product photo

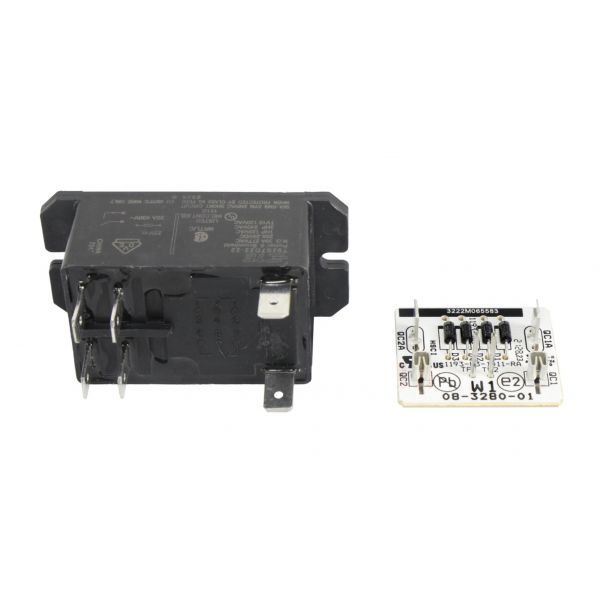

Rheem-Ruud PD425161 2-Pole Relay W/Rectifier Control Board Kit

Be the first to review this product
Special Price $83.87 Regular Price $96.46
In stock
SKU
PD425161

The Rheem-Ruud PD425161 Relay 2-Pole with Rectifier Control Board Kit is a mandatory part of controlling the electricity flow within the HVAC systems. It has a 2-pole relay design and has an inbuilt rectifier which changes AC to DC so that the motors and compressors perform constant and effective operation. The kit is intended to enable consistent operation of heating and cooling systems, which ensure the high functionality and the durability of these systems.

Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/p/d/pd425161.jpg
Write Your Own Review
You're reviewing:Rheem-Ruud PD425161 2-Pole Relay W/Rectifier Control Board Kit
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Rheem-Ruud PD425161 Relay?

Regularly inspect the relay and control board for dust, corrosion, or loose connections. Test the relay operation periodically to ensure proper function. Keep terminals clean and wiring secure. Always turn off system power before performing any maintenance.

What are common issues with the Rheem-Ruud PD425161 Relay?

  • Relay failing to engage or disengage properly.
  • Burnt or corroded terminals.
  • Erratic control signals from the board.
  • Overheating or intermittent electrical faults.

Installation Steps

Step 1: Turn off power to the unit and disconnect all electrical connections.

Step 2: Remove the existing relay and control board carefully, noting wire locations.

Step 3: Position the new relay in place.

Step 4: Reconnect all wires to the correct terminals according to the labeling or manual.

Step 5: Restore power and test the system for proper operation and functionality.
