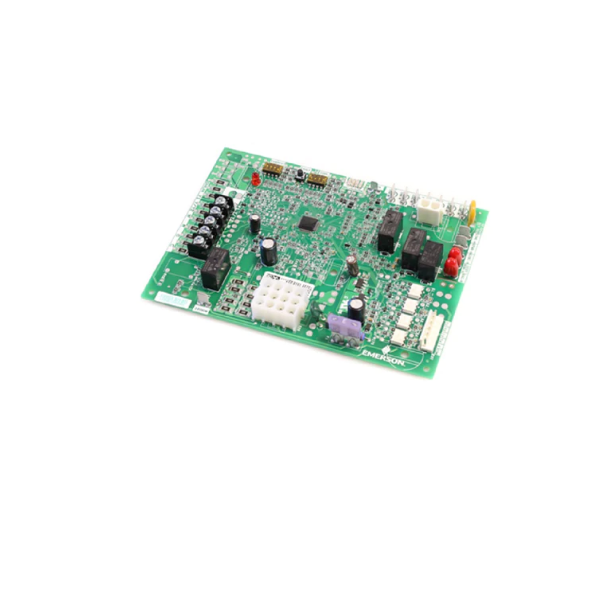

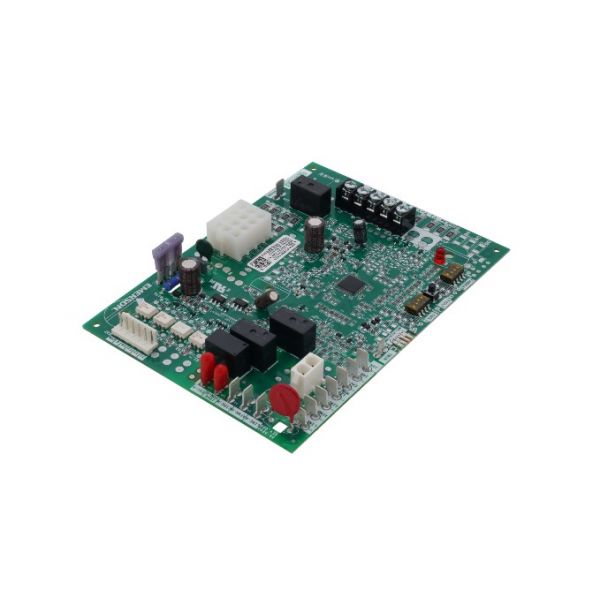

The Goodman PCBBF145S circuit board is the gas-fired furnace or air handler. It receives signals from various sensors, like thermostats and flame detectors, and uses them to control essential components like the gas valve, blower motor, and ignition system. This circuit board operates within a wide range of temperatures (-30°C to 70°C) ensuring functionality in diverse environments. The integrated relays can handle currents between 10-15 Amps, allowing the board to manage power delivery to these critical HVAC components. A properly functioning PCBBF145S circuit board is vital for the safe and efficient operation of your Amana-Goodman gas furnace or air handler.
The Amana-Goodman PCBBF145S Circuit Board controls compatible Amana and Goodman gas furnaces, guaranteeing effective and safe winter warmth. This microprocessor marvel serves as the central control unit, meticulously managing all furnace operations. It acts as the orchestra's conductor, constantly tracking temperature, pressure, and safety limits through a network of sensors. The PCBBF145S uses real-time data to precisely control critical components such as the gas valve, inducer draft motor, circulating blower, and hot surface igniter. When your home needs heat, the control board starts the process by sending electrical signals to the igniter, which causes gas combustion. It then operates as a conductor, regulating gas flow through the valve to ensure consistent and desired comfort levels. The PCBBF145S constantly monitors system pressure and limits switches to avoid overheating and other potential problems. If an issue arises, the board can take action to turn off the furnace to prevent further damage. This electronic control board ensures that your furnace operates consistently and effectively, keeping your home warm and cozy throughout the winter season. The manufacturer's specifications provide specific features and compatibility information.
Key Features for Amana-Goodman PCBBF145S
Microprocessor Control: This advanced technology allows for precise and efficient management of all furnace functions.
Multi-Component Management: The board controls vital components like the gas valve, inducer draft motor, circulating blower, and hot surface igniter.
Accurate Ignition Control: It ensures safe and reliable gas ignition by sending precise electrical signals to the hot surface igniter.
Gas Flow Regulation: Maintains consistent heating levels by regulating the flow of gas through the valve.
Advanced Safety Features: The PCBBF145S constantly monitors system pressure and limit switches to prevent overheating and potential hazards. It can shut down the furnace if an issue arises.
Signs of a Faulty Amana-Goodman PCBBF145S Circuit Board:
No Power or Unresponsive System: If your furnace refuses to turn on despite a thermostat set to "heat," the control board could be to blame. As the central brain, a faulty board can prevent the furnace from receiving operational instructions.
Inconsistent Heating: The temperature in your home might fluctuate wildly, with periods of extreme hot or cold even when the thermostat settings remain unchanged. This erratic behavior suggests the control board might be misinterpreting sensor signals or malfunctioning in its control functions, leading to improper regulation of the gas valve or blower motor.
Short Cycling: The furnace might turn on and off frequently in rapid cycles, failing to achieve the desired temperature. This rapid cycling can be caused by the control board misreading sensor data or malfunctioning in its control functions.
