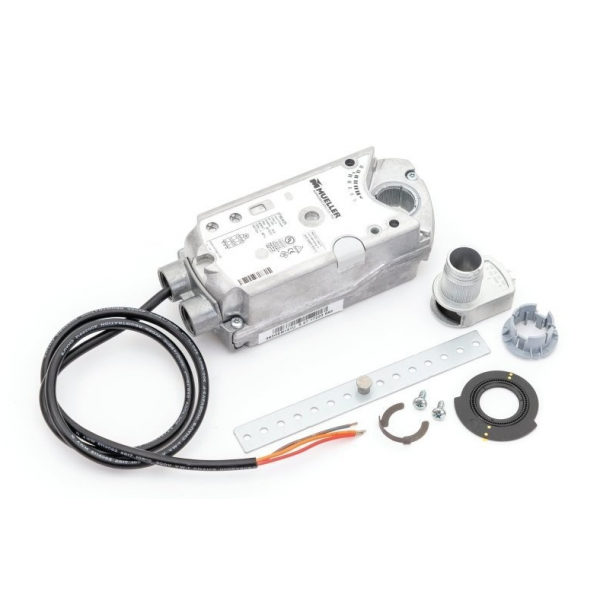

The Mueller Industries P36409 Actuator is a high quality part used for control of HVAC systems. Measuring 3/8” x 3/8” and made of aluminum, this actuator runs on 24V power supply for maximum performance. It is lightweight but strong enough to be used in a number of applications. This actuator works through converting electrical signals into mechanical operation and controls the flow of air or fluids in heating, ventilating and air conditioning systems. It is mostly applied in zone control systems in which different parts of a building can be set with different temperatures that improves comfort and energy consumption standards
What maintenance is required for the Mueller Industries P36409 Actuator?
Inspect the actuator regularly for wear, loose connections, or unusual noise. Clean the exterior and ensure the shaft moves smoothly. Lubricate moving parts if specified by the manufacturer. Always disconnect power before servicing to prevent electrical hazards.
What are common issues with the Mueller Industries P36409 Actuator?
Reduced or inconsistent movement.
Unusual noise or vibration during operation.
Failure to respond to control signals.
Loose or corroded electrical connections.
Installation Steps
Step1: Turn off power to the HVAC or control system before starting.
Step2: Remove the old actuator and note linkage position.
Step3: Mount the new actuator in the same orientation and secure fasteners.
Step4: Reconnect the 24 V wiring to correct terminals per diagram.
Step5: Restore power and test actuator movement and linkage function.
