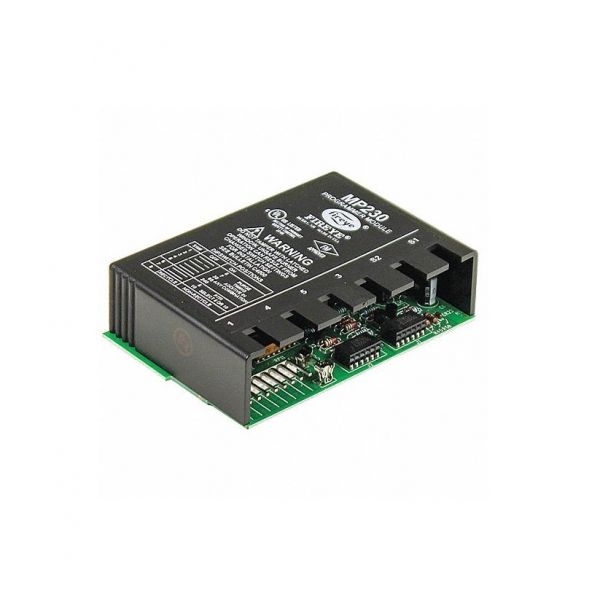

Fireye MP230 Programmable Modulation, Selectable Timing

Be the first to review this product
Special Price $1,462.14 Regular Price $1,622.97
In stock
SKU
MP230
The Fireye MP230 Programmable Modulation, Selectable Timing is suitable for HVAC systems. It enables fine control of combustion air and fuel to provide optimal burner operation. The product has programmable timing and adjustable settings to cater for different types of burners and configurations. It is commonly used in commercial and industrial HVAC systems which increases energy efficiency, decreases emissions and increases system performance. This provides flexibility in modulation and timing which is used to keep the operation of burners consistent and reliable, providing better combustion control, less fuel consumption and longer equipment life.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/m/p/mp230.jpg

Specifications

  • Type: Programmer Module

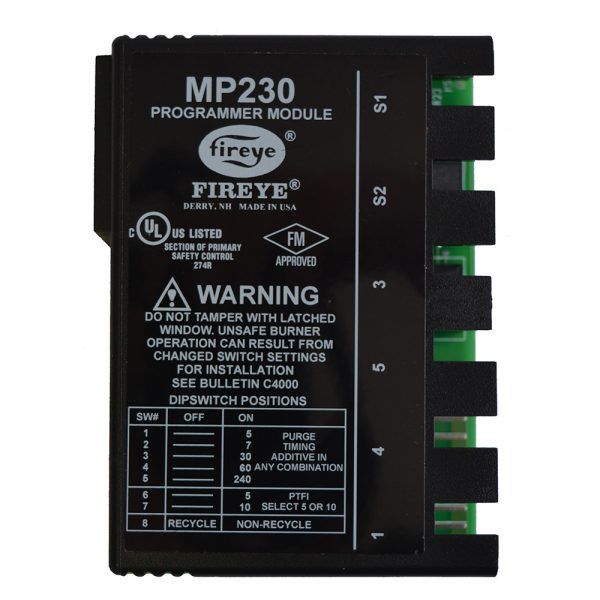

    MP230 Fireye Programmer Module

    The MP230 Fireye Programmer Module serves as a pivotal component in overseeing ignition and flame supervision within combustion systems. Offering adaptability, this module boasts adjustable features such as purge timing, trial-for-ignition timing, and the choice between recycle and non-recycle operation. These customizable attributes empower users to fine-tune flame control to meet their precise requirements. Designed for compatibility with Fireye Modular M-Series II controls, the module ensures ease of configuration through user-friendly dipswitches. Widely applied in industrial settings, it finds common usage in boilers, furnaces, and various other combustion equipment, contributing to efficient and tailored operational solutions.

    Key features:

    • Purge Timing: Set the duration of pre-purge and post-purge cycles to eliminate hazardous gases from the combustion chamber before and afterburner operation.
    • Trial-for-Ignition (TFI) Timing: Define the maximum time allowed for the flame establishment, preventing fuel accumulation in case of failed ignition.
    • Recycle/Non-Recycle Operation: Choose whether the controller attempts relighting the burner after a flame failure (recycle) or enters a lockout state (non-recycle).
    • Dipswitch Settings: Configure purge, TFI, and recycle/non-recycle timings conveniently using onboard dipswitches, eliminating the need for software or tools

    Signs of faulty  Fireye MP230 programmer

    Here are signs that a Fireye MP230 programmer module

    • Error Codes or Messages
    • Inconsistent Temperature Control
    • Communication Failures
    • Unexpected Shutdowns or Resets
    • Abnormal Display Behavior
    • Unresponsive Controls

    Choose the best HVAC equipment parts and supplies from PartsHnC!

    • Same Day Shipping

    • Best Quality And Best Price

    • Wide Range of Inventory

    • Best Customer Service

    Have More Questions or Need Help to Place The Order?
    Reach us at (866)773-0907 or contact@partshnc.

    Reviews
    Write Your Own Review
    You're reviewing:Fireye MP230 Programmable Modulation, Selectable Timing
    Your Rating
    Product Questions (2)
    Customer Questions
    What maintenance is required for the Fireye MP230 Programmable Modulation?

    Inspect wiring connections and terminal tightness regularly to ensure stable modulation control. Clean dust from enclosure and verify timing settings periodically. Check input signals and calibration to prevent erratic modulation behavior and ensure safe operation.

    What are common issues with the Fireye MP230 Programmable Modulation?

    • Loss of modulation response due to signal interference.
    • Timing drift causing inconsistent control output.
    • Loose or faulty wiring leading to intermittent operation.
    • Configuration errors resulting in incorrect modulation behavior.

    Installation Steps

    Step 1: Disconnect power and apply lockout/tagout before servicing.

    Step 2: Mount securely on control panel DIN rail or proper enclosure.

    Step 3: Wire input power per manufacturer's schematic and verify voltage rating.

    Step 4: Connect modulation and timing control terminals, ensuring tight, correct polarity connections.

    Step 5: Verify sensor and actuator connections, ensuring proper signal continuity and grounding.

    Step 6: Configure selectable timing settings according to system requirements.

    Step 7: Restore power, check indicators, and test full system operation safely.
