Trane MOT19454 1/2HP 2-Speed Motor 1030 RPM 200-230V/1PH
Special Price $266.54 Regular Price $295.86
In stock
SKU
MOT19454

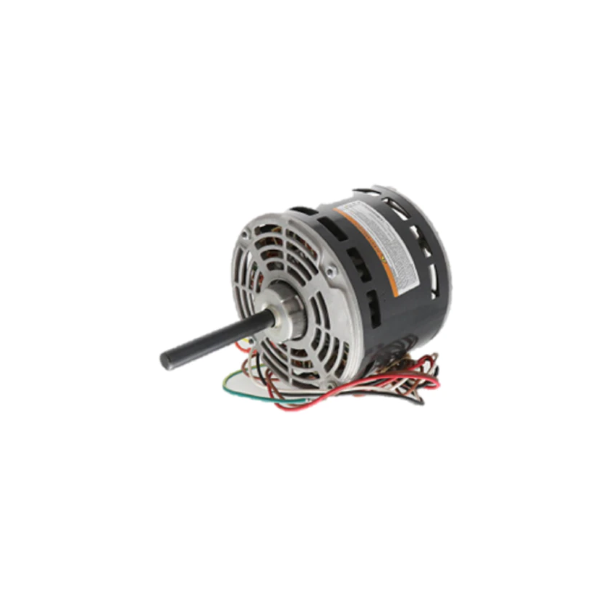

The Trane MOT19454 is a 1/2 horsepower electric motor with two operational speeds, single phase. This motor may be used in several HVAC devices including packaged units, air handlers, and furnaces. Its main feature is that this motor can provide two speeds and variable airflow. It can choose the lower speed 1030 RPM for quieter operation or comfort level maintenance or the higher speed 1200 RPM for faster heating or cooling during peak demand. The high speed is for cooling faster on a hot day and the low speed is for quieter operation at night. This motor is single-phase, so it runs on a common household voltage of 200-230V.
Manufacturer:
Specifications
- Length: 4.31"
- Weight: 12.53lbs
- Design Torque: 27.2 Oz-ft at 230V
- Enclosure Type: OAO
- Frame Size: 48
- Frequency: 60 Hz
- HP: 1/2 HP
- Motor Length: 4.312"
- Mounting Type: Belly B
- Number of Phase: 1
- Number of Shafts: 1
- Number of Speeds: 2
- Rotation: CW / CCW
- Shaft Diameter: 0.5"
- Shaft Length: 3.5"
- Speed: 1,200 RPM
- Capacitor: 10.0 MFD/370V AC
- Voltage: 200-230 V
- Wire Length: 30"
