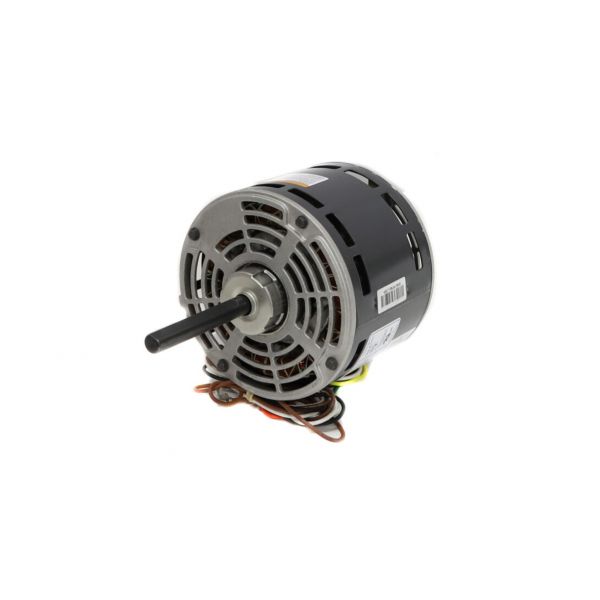

Trane MOT19004 277V Motor 1Phase 1/3 HP 1050 RPM
Special Price $320.91 Regular Price $356.21
In stock
SKU
MOT19004
The Trane MOT19004 is a single-phase motor that is used to drive various part of the Trane HVAC products. This compact motor is approximately 4.3” long with a 0.5” diameter shaft. It has a small size, but it has a 1/3 HP and rotates at 1050 RPM making it ideal for tasks that do not need high power. Another unique characteristic of the MOT19004 is that it has a reversible rotation CCW. This makes it possible to turn the motor in either direction. The wire length of 50” is sufficient to make connections within the system and the belly band mounting makes it easier to install.
Manufacturer:
Specifications
- Length: 4.31"
- Body Length: 4.312"
- Design Torque: 30.2 Oz-ft at 277V
- Enclosure Type: OAO
- Flat Length: 3"
- Frame Size: 48
- Frequency Rating: 60 Hz
- HP: 1/3
- Insulation Class: F
- Motor Length: 4.312"
- Mounting Type: Belly Band
- Number of Phase: 1
- Number of Shafts: 1
- Number of Speeds: 1
- Rotation: CW / CCW
- RPM: 1050
- Shaft Diameter: 0.5"
- Shaft Length: 3.5"
- Voltage: 230V-277V
- Wire Length: 50"
- Weight: 11.9lbs
