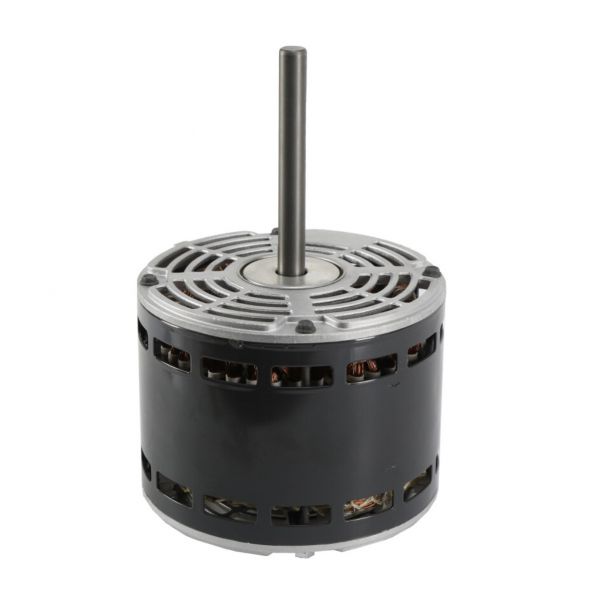

Trane MOT18582 1-Phase Motor 1/5Hp 825 RPM 208-230V
Special Price $250.10 Regular Price $277.62
In stock
SKU
MOT18582
The Trane MOT18582 is a 1/5 horsepower single-phase electric motor for indoor HVAC applications. It is a 208-230 volts, 825 RPM synchronous speed machine. But it can run at different speeds up to 850 RPM. This motor probably exists in your HVAC system’s inducer motors, condenser fan motors, or furnace blowers. The MOT18582 is a well-known permanent split capacitor motor, which has quiet operation and reliability. They use a capacitor to operate more effectively and increase starting torque. This motor is ODP designed and has an operating temperature range of 0°F to 140°F and is suitable for a wide range of indoor HVAC applications.
Manufacturer:
Specifications
- Length: 8.31"
- Height: 4.3099999999999996"
- Width: 5.6"
- Weight: 13 lbs
- Bearing Type: Ball
- Design Torque: 18.8
- Enclosure Type: ODP
- Frequency: 60 Hz
- HP: 1/5 HP
- Motor Type: Permanent Split Capacitor
- AC
- Indoor
- Mounting Type: Belly B and
- NEMA Dimensions: 5.6875 x 8.125
- Number of Phase: 1
- Number of Shafts: 1
- Number of Speeds: 4
- Rotation: CCW / LE
- Shaft Diameter: 0.5
- Shaft Length: 3
- Speed: 850 RPM
- Capacitor: 5.0 MFD/440V AC
- Temperature: 0°F to 140°F
- Wire Length: 16
- Voltage: 208-230V
