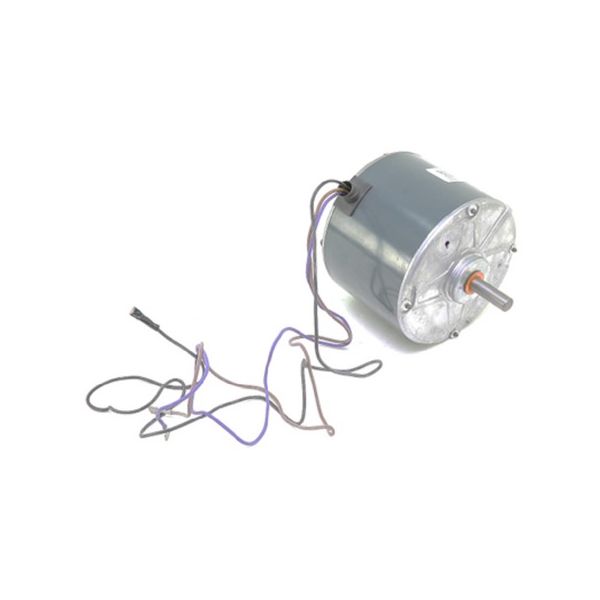

Trane MOT13001 Motor 1/8 HP 200/230V 825 RPM 48 Frame
Special Price $293.31 Regular Price $325.57
Out of stock
SKU
MOT13001
The Trane MOT13001 is a commercial-grade Motor that is used in condenser fan units of Trane HVAC systems. This 1/8 horsepower motor is small with a body length of 4.48” and a frame size of 48, but it is mighty. It operates at a steady 825 RPM and has a design torque of 13.7 oz-ft at 230V to circulate air through the condenser coils. The motor is a single phase, 60 Hz current and has an automatic overload protection mechanism to prevent the motor from overheating. Equipped with a sleeve bearing and TEAO enclosure, is highly durable and resistant to dust or moisture.
Manufacturer:
Specifications
- Bearing Type: Sleeve
- Body Length: 4.48"
- Design Torque: 13.7 Oz-ft at 230V
- Enclosure Type: TEAO
- Flat Length: 1.25"
- Frame Size: 48
- Frequency: 60 Hz
- HP: 1/8
- Insulation Class: B
- Load Current (A): 0.9
- Motor Cap: 5 UF at 370 V
- Motor Type: AC, Condenser Fan
- Mounting Type: Band /Through-Bolt
- NEMA Dimensions: 5.6875 x 8.125"
- Number of Phase: 1
- Number of Speeds: 1
- Protector Type: Automatic Overload
- Rotation: CCW / LE
- RPM: 850
- Service Factor: 1
- Shaft Diameter: 0.5"
- Shaft Length: 1.5"
- Slinger: Yes
- Standards: CSA, UL
- Suggested Capacitor: 5.0 MFD/370V AC
- Technology: PSC
- Temperature Rating: 158°F
- Thermal Protector: True
- Voltage: 200V-230V
- Wire Length: 40"
- Weight: 8.67lbs
