Trane MOT10513 Motor 3/4 HP 575V 1100 RPM 48 PSC
Special Price $298.39 Regular Price $331.22
In stock
SKU
MOT10513

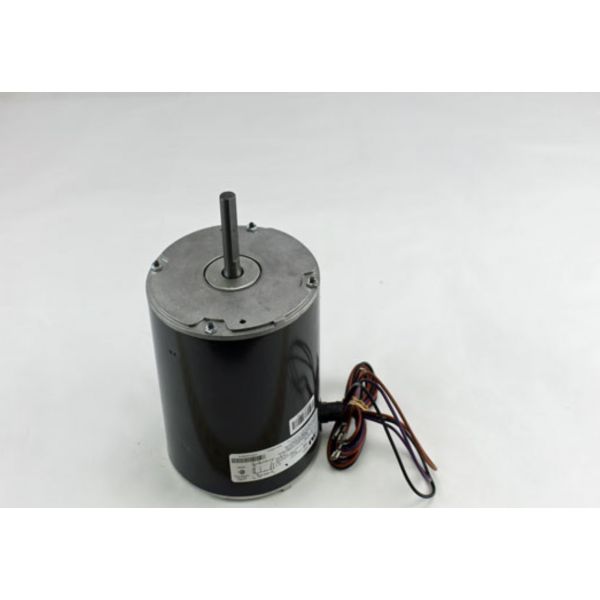

The Trane MOT10513 is a high-quality 3/4HP motor Which is intended to be used in outdoor Trane HVAC equipment. This is a single-phase 60 Hz motor that is designed and built using PSC technology to give you a dependable power supply. It measures about 9 inches in length and 6 inches in width, and this makes it have a small form that can easily fit in different Trane models. Its ball bearings make it easy to operate and the TEAO enclosure shields the motor from dust and other environmental conditions. The MOT10513 directly drives fans or other components with a counter clockwise direction at 1140 RPM.
Manufacturer:
Specifications
- Length: 9.20" || 8.81"
- Width: 5.67" || 5.63"
- Bearing Type: Ball
- Body Length: 6.312"
- Enclosure Type: TEAO
- Flat Length: 2"
- Frame Size: 48
- Frequency: 60 Hz
- HP: 3/4
- Insulation Class: B
- Load Current: 2.4A
- Motor Type: Permanent Split Capacitor
- AC
- Air Over
- Direct Drive
- OuTDoor
- Mounting Type: Vertical Shaft Down
- NEMA Dimensions: 5.6875 x 8.125"
- Number of Phase: 1
- Number of Speeds: 1
- Rotation: CCW / LE
- RPM: 1,140
- Service Factor: 1
- Shaft Diameter: 0.5"
- Shaft Length: 2.5"
- Standards: CSA,UL
- Technology: PSC
- Type: AC
- Voltage: 575V
- Wire Length: 45"
- Weight: 24.1lbs
