Trane MOT10344 Motor 460V 1Phase 0.9 HP 1075 RPM 2 Speed
Special Price $744.35 Regular Price $826.23
In stock
SKU
MOT10344

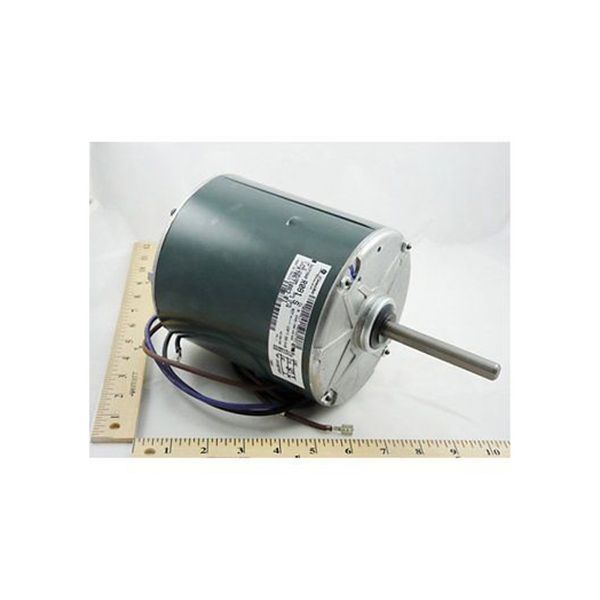

The Trane MOT10344 is a versatile motor that is used in different Trane HVAC applications with ease.The 0.9 horsepower and it requires a single-phase 460V electrical supply. It has dimensions of 9.56” in length, and 5.63” in width; it has a frame size of 48, making it easy to fit in other devices. An ODP enclosure shields the motor from dripping liquids and ball bearings provide efficiency at 60Hz. The real strength of the MOT10344 is its versatility. It has two speeds, up to 1075 RPM, so it can adjust to cooling or heating needs in your Trane system.
Manufacturer:
Specifications
- Length: 9.56"
- Weight: 21.18lbs
- Width: 5.63"
- Bearing Type: Ball
- Body Length: 6.562"
- Enclosure Type: ODP
- Flat Length: 2.5"
- Frame Size: 48
- Frequency Rating: 60Hz
- HP: 1
- Insulation Class: B
- Load Current: 2.7
- Motor Type: Permanent Split Capacitor
- Air Over
- Mounting Type: Belly B and
- NEMA Dimensions: 5.6875 x 8.125"
- Number of Phase: 1
- Number of Shafts: 1
- Number of Speeds: 2
- Rotation: CW / LE
- RPM: 1075
- Service Factor: 1
- Shaft Diameter: 0.5"
- Shaft Length: 3"
- Standards: CSA,UL
- Technology: PSC
- Temperature Rating: 113°F
- Type: AC
- Voltage: 460V
- Wire Length: 18"
- Weight: 21.18lbs
