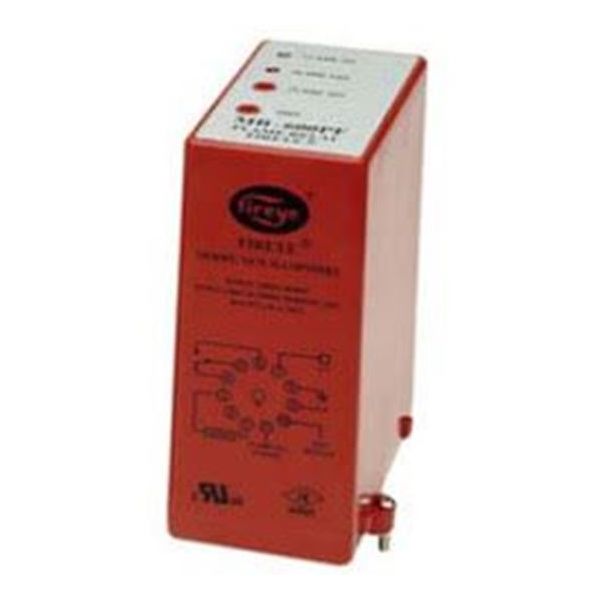

The Fireye MBPF-100S Flame-Sensor Module is a high-performance UV self-checking flame sensor that serves industrial burner management systems of HVAC systems. The sensor uses ultraviolet radiation detection from flames to provide reliable flame monitoring output. The integrated automatic verification function operates in real-time to check the sensors' performance thereby minimizing false alarms while improving system safety. The module functions optimally for boilers and furnaces alongside other combustion systems where it decrease hazardous conditions during reliable fuel usage. The system operates under demanding industrial needs because it maintains durability for long-term use at high temperatures.
The Fireye MBPF-100S is a microprocessor-based flame safeguard control system designed for a wide range of gas-fired equipment. It plays a crucial role in ensuring the safe and efficient operation of your equipment by monitoring the presence and quality of the flame
key features
Compact and flexible: Designed for easy integration into various equipment designs.
User-friendly interface: Simple keypad and LED display for easy operation and monitoring.
Multi-fuel compatibility: Works with a wide range of gas fuels, including natural gas, propane, and oil.
Adjustable settings: Allows customization of operating parameters for specific application needs.
Durable construction: Built to withstand harsh industrial environments.
Applications:
Industrial boilers and furnaces
Commercial cooking equipment
Ovens and dryers
Other gas-fired equipment requiring reliable flame safety control
Benefits:
Enhanced safety: Reduces the risk of accidents and equipment damage by ensuring proper flame presence and control.
Increased efficiency: Optimizes fuel consumption and burner performance through precise flame monitoring.
Reduced downtime: Provides quick and easy troubleshooting for minimizing equipment downtime.
Improved data management: Enables data logging and remote monitoring for enhanced system management.
Recognizing Potential Issues with the Fireye MBPF-100S Flame Safeguard Control System:
Performance Issues:
Frequent burner shutdowns: If the burner unexpectedly shuts down despite a visible flame, it could suggest malfunctions in the flame monitoring system or control logic.
Unstable flame patterns: Erratic or fluctuating flames might indicate sensor issues, improper fuel pressure, or burner misalignment.
Increased fuel consumption: Higher fuel usage without a corresponding increase in heat output could be a sign of inefficient combustion due to faulty control functions.
Display and Error Codes:
Error messages: Unfamiliar or persistent error codes displayed on the MBPF-100S need to be addressed promptly. Consult the Fireye manual or a qualified technician for proper interpretation and troubleshooting.
Unresponsive interface: If the keypad or display malfunctions, hindering operation or monitoring, immediate attention is required.
Physical Indications:
Visible damage: Look for signs of physical damage to the MBPF-100S unit, such as cracks, dents, or corrosion, which could affect its performance.
Loose connections: Ensure all connections to the unit are secure and free of corrosion, as faulty connections can disrupt communication and functionality.
Excessive heat: If the MBPF-100S feels abnormally hot to the touch, it could be a sign of internal component malfunctions.
Safety First:
Remember, safety is paramount! If you suspect any issue with the MBPF-100S or your gas-fired equipment, immediately shut down the gas supply and equipment.
Do not attempt to diagnose or repair the problem yourself. Only qualified technicians trained in gas-fired equipment and combustion safety systems should handle troubleshooting and repairs.
Proactive Approach:
Regular inspections: Schedule routine visual checks for physical damage, unusual performance changes, or error messages.
Maintenance guidelines: Follow the recommended maintenance procedures outlined by Fireye or your equipment manufacturer.
Qualified technicians: Trust trained professionals for installation, maintenance, and repair of the MBPF-100S and the overall combustion safety system.
Choose the best HVAC equipment parts and supplies from PartsHnC!
A: It continuously monitors the flame, ensuring proper combustion and preventing unsafe situations like burner run-on or fuel leaks. It acts as a guardian for your equipment's safety and efficiency.
Q: What equipment is it compatible with?
A: Its versatility allows it to work with various gas-fired equipment, including boilers, furnaces, ovens, and dryers, as long as they use compatible fuels like natural gas, propane, or oil.
Q: How is it controlled?
A: It features a user-friendly keypad and LED display for easy operation and monitoring of flame status and system settings.
Functionality and Performance:
Q: How does it monitor the flame?
A: It utilizes a UV or IR sensor to detect the flame's presence and quality, ensuring proper combustion for optimal performance and safety.
Q: What safety features does it offer?
A: It implements various safeguards like flame supervision, ignition sequence control, and purge timers to prevent dangerous situations and ensure safe burner operation.
Q: How does it improve efficiency?
A: By accurately monitoring the flame, it optimizes fuel consumption and burner performance, leading to reduced fuel usage and increased efficiency.
Troubleshooting and Safety:
Q: What are signs of a faulty MBPF-100S?
A: Frequent burner shutdowns despite a visible flame, unstable flame patterns, increased fuel consumption, unfamiliar error codes, unresponsive interface, or physical damage to the unit are potential indicators.
Q: What should I do if I suspect a problem?
Safety first! Immediately shut down the gas supply and equipment. Contact a qualified technician for diagnosis and repair. Never attempt to fix it yourself.
Q: How can I prevent issues?
Regular inspections: Schedule routine checks for physical damage, unusual performance changes, or error messages.
Maintenance: Follow the recommended maintenance procedures outlined by Fireye or your equipment manufacturer.
Qualified technicians: Trust professionals for installation, maintenance, and repair of the MBPF-100S and the overall combustion safety system.
