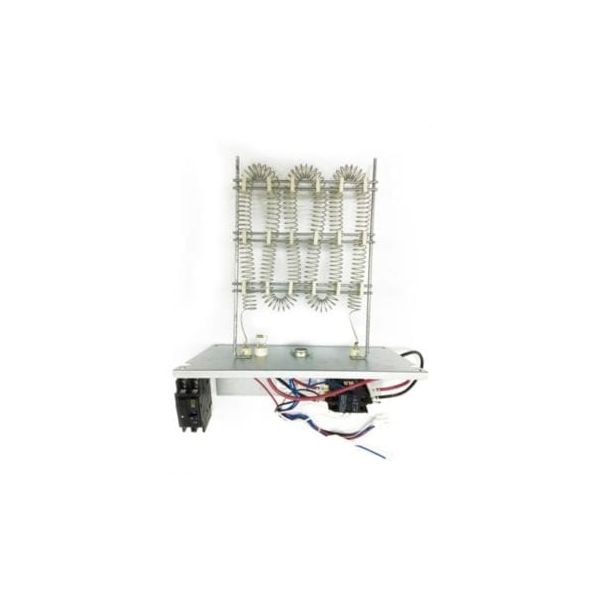

Trane MAYHTR1A20BKRB 20kW Heater Assembly

Be the first to review this product
Special Price $233.80 Regular Price $259.52
Out of stock
SKU
MAYHTR1A20BKRB
The Trane MAYHTR1A20BKRB is a heater assembly for use with electric heating applications having a maximum output of 20 kilowatts. It is also compatible with a single-phase, 60 Hz electrical system and it connects to a circuit breaker directly. The heater assembly is used in electric furnaces and air handlers and converts electrical current into heat by resistance heating elements. When electrical current passes through these elements, they heat up and heat the air flowing past the assembly. Trane is rated for use with voltages of 208 or 240 volts and measures 12.25" long, 15.5" high, and 9.44" wide. Electric heater assemblies offer the advantages of clean operation, precise temperature control, and efficient heating in areas that traditionally have not had access to natural gas.
Add to Wish List
Heating & Furnace Parts, Crankcase Heaters
Manufacturer:
https://www.partshnc.com/media/catalog/product/m/a/mayhtr1a20bkrb_trane_partshnc.png

Specifications

  • Length: 12.25"
  • Height: 15.5"
  • Width: 9.438"
  • Weight: 7.93lbs
  • Connection Type: Circuit Breaker
  • Frequency: 60 Hz
  • Heating Capacity: 20 kWh
  • MCA: 48.7
  • Model-Phase: 1
  • Power: 60A
  • Voltage: 208/240 V
Manufacturer Name: Trane
Product Number: MAYHTR1A20BKRB
OEM Part Number: MAYHTR1A20BKRB
Product Description: 20Kw Heater Assy
Weight:7.93lbs/3596.98g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Trane MAYHTR1A20BKRB 20kW Heater Assembly
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane MAYHTR1A20BKRB Heater Assembly?

Inspect the heater assembly periodically for dust buildup, loose electrical connections, and signs of overheating on terminals or wiring. Ensure all heater elements are securely mounted and that airflow through the air handler is not restricted to prevent thermal stress. Check for discoloration or damage that may indicate electrical imbalance or wear. Always disconnect power before servicing to avoid electrical shock and protect internal components.

What are common issues with the Trane MAYHTR1A20BKRB Heater Assembly?

  • Heating element burnout or reduced heating output.
  • Loose or faulty electrical connections causing intermittent operation.
  • Overheating due to restricted airflow or blocked components.
  • Blown fuses or tripped breakers during operation.

Installation Steps

Step 1: Turn off power at the disconnect and breaker panel, and verify all circuits are de-energized.

Step 2: Open the electric furnace access panel and locate the heater kit compartment.

Step 3: Slide the heater assembly into the designated mounting rails and secure it with the supplied fasteners.

Step 4: Connect the power and control wiring according to the wiring diagram.

Step 5: Reinstall all covers, restore power, and verify proper heater operation and airflow.
