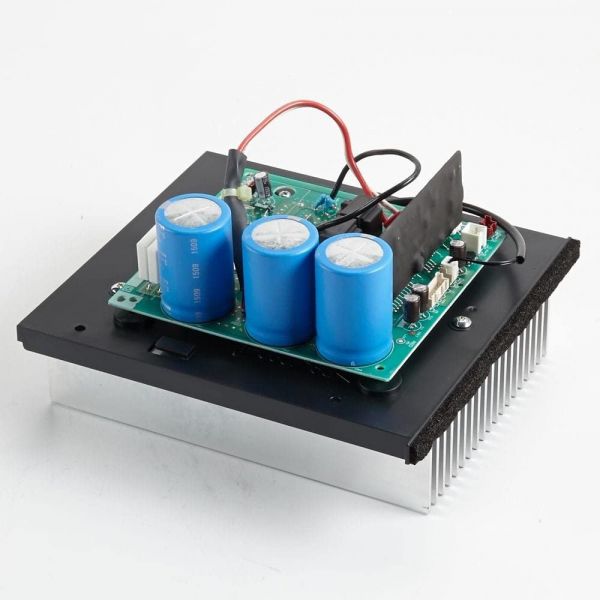

The Mitsubishi Electric M219T4440 Power Control Board is an essential component for controlling the function of advanced HVAC systems. It has a voltage rating of 230V AC between 50 and 60 Hz; they are compliant with most original power installations in the region. It is currently rated at 3.0 amps and draws only 5.0 watts of power, making it perfect for controlling the electrical load of your HVAC system. Screw terminals on the board make it easy to connect the other system components in the circuit.
Manufacturer Name:Mitsubishi Electric Product Number: M219T4440 OEM Part Number: M219T4440 Product Description: Electric power boards used in HVAC systems play a crucial role in managing and distributing electrical power within the system. These power boards are designed to ensure the safe and efficient operation of HVAC equipment. Power boards typically incorporate circuit breakers or fuses to protect the HVAC system from electrical overloads. These devices interrupt the electrical circuit when excessive current flows, preventing damage to the system. The board also includes a disconnect switch or disconnecting means that allows for the isolation of power to the system. This is important for servicing and maintaining the system. The power board is responsible for distributing electrical power to various components within the HVAC system, such as the compressor, blower motor, and control circuits. The Mitsubishi Electric M219T4440 Power Control board may house control components such as relays, contactors, and time-delay relays that manage the operation of various HVAC system functions. A transformer is included in the power board to step down the voltage from the main electrical supply to the lower voltage levels required for control circuits and sensors. Modern HVAC power boards may incorporate diagnostic features that can help technicians identify and troubleshoot electrical issues within the system. Electric power boards have clearly labeled wiring terminals or connection points for both incoming and outgoing electrical connections. The Mitsubishi Electric M219T4440 Power Control borads used in HVAC systems are critical components responsible for safely distributing electrical power, protecting the system from electrical faults, and ensuring the efficient operation of heating, ventilation, and air conditioning equipment.
Key Features of electric boards in HVAC systems are:
Power distribution for HVAC components
Control components (relays, contactors)
Wiring terminals for connections
Transformer for voltage control
Safety features (short-circuit, ground fault)
Weight:7.02lbs/3184.22g
Choose the best HVAC equipment parts and supplies from PartsHnC!
What should I do if I encounter a ground fault trip on the power board?
In the event of a ground fault trip, it's essential to consult your HVAC technician to identify and rectify the issue, as it can indicate a potential electrical problem.
Do power boards have surge protection for lightning strikes and electrical surges?
Yes, the power board offers abrupt surge protection from electric fluctuations and other mechanical as well as lightning surges that impact the system.
What maintenance is required for the power board, and how often should it be inspected?
Regular maintenance should include visual inspections for signs of wear, loose connections, and cleaning. The frequency may vary; consult the manufacturer's guidelines.
