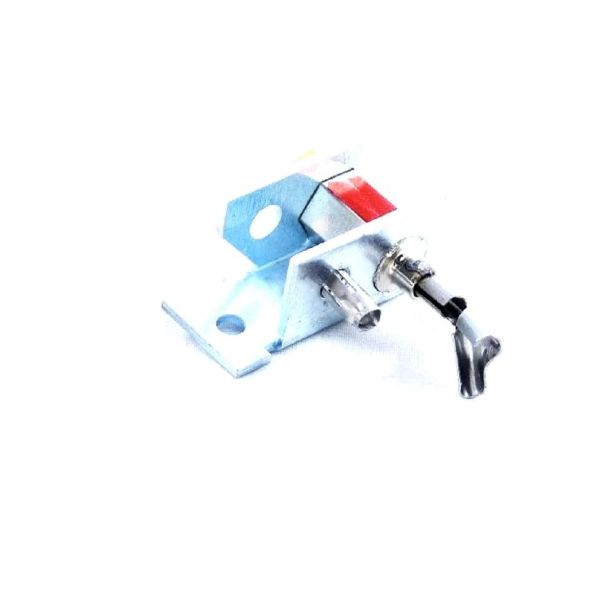

main product photo

Lochinvar & A.O. Smith 100109718 LP Pilot Burner Assembly

Rating:
5 5 1
1  Review Add Your Review
Special Price $99.92 Regular Price $114.91
In stock
SKU
100109718
The Lochinvar & A.O. Smith 100109718 is a LP Pilot Burner Assembly which is a pilot ignition assembly suitable for use in propane based water heater and boiler appliances. This assembly consists of a pilot burner which maintains a continuous flame that lights the main gas burner when required. Designed for Lochinvar and A.O. Smith HVAC systems, it guarantees the best performance of the appliances. Advantages include enhanced ignition and the normality in risk of leaking and consistant heating in the heating direction, which make the heating system safe and efficient.
Add to Wish List
HVAC Furnace Parts, Burners
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/100109718_lochinvar--a.o.-smith_partshnc.png

Specifications

  • Type: LP Pilot Burner Assembly
    Manufacturer Name: Lochinvar & A.O. Smith
    Product Number: 100109718
    OEM Part Number: 100109718
    Product Description: Lp Pilot Burner Assembly
    Weight:0.1lbs/45.36g

    Choose the best HVAC equipment parts and supplies from PartsHnC!

    • Same Day Shipping

    • Best Quality And Best Price

    • Wide Range of Inventory

    • Best Customer Service

    Have More Questions or Need Help to Place The Order?
    Reach us at (866)773-0907 or [email protected]

    Reviews 1
    Write Your Own Review
    You're reviewing:Lochinvar & A.O. Smith 100109718 LP Pilot Burner Assembly
    Your Rating
    Product Questions (2)
    Customer Questions
    What maintenance is required for the Lochinvar & A.O. Smith 100109718 Pilot Burner Assembly?

    Regularly inspect the LP pilot burner assembly for soot, debris, or corrosion to ensure proper ignition. Clean the burner with a soft brush, check gas connections for leaks, and ensure flame stability. Proper maintenance prevents inefficient operation and safety hazards.

    What are common issues with the Lochinvar & A.O. Smith 100109718 Pilot Burner Assembly?

    • Failure to ignite consistently.
    • Weak or unstable flame.
    • Gas leaks or odor.
    • Soot buildup causing incomplete combustion.
    • Pilot sensor malfunctions.

    Installation Steps

    Step 1: Turn off the gas supply and power to the appliance.

    Step 2: Remove the appliance cover to access the existing pilot burner.

    Step 3: Disconnect the gas line and any wiring from the old pilot assembly.

    Step 4: Install the new LP Pilot Burner Assembly in place, reconnecting gas and wiring securely.

    Step 5: Check all connections for leaks.

    Step 6: Replace the cover, restore gas and power, and test ignition.
