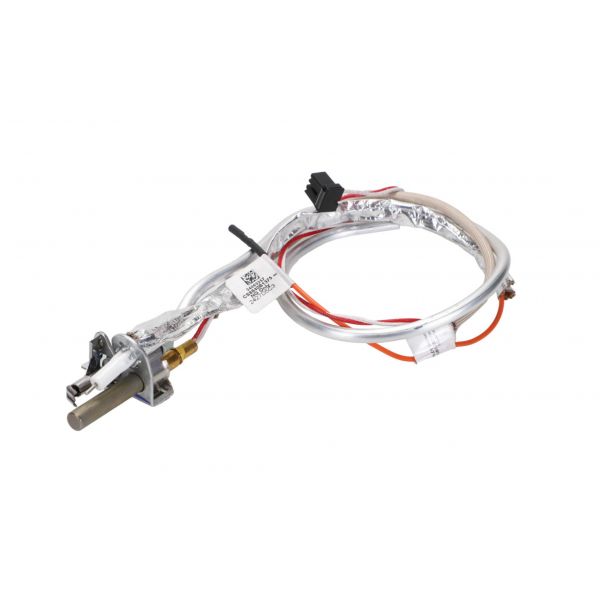

Lochinvar & A.O. Smith 100368388 Natural Gas Pilot Assembly Kit W/Tube

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $75.40 Regular Price $86.71
Out of stock
SKU
100368388
The Lochinvar & A.O. Smith 100368388 K pilot assembly with tube serves natural gas water heaters as an ignition HVAC system. The component serves as a dependable ignition system to activate the main burner. The assembly contains three components: a pilot burner and a gas delivery tube and an igniter. The thermostat activation causes the igniter to spark and ignite the pilot flame. After ignition the pilot flame activates the main burner which produces hot water. This component ensures both safety and operational efficiency of your water heater.
Add to Wish List
HVAC Controls & Electrical, Control & Sensing Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/100368388.jpg
Write Your Own Review
You're reviewing:Lochinvar & A.O. Smith 100368388 Natural Gas Pilot Assembly Kit W/Tube
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Lochinvar & A.O. Smith 100368388 Pilot Assembly Kit?

Periodically inspect the pilot assembly and tubing for soot, dirt, or corrosion that can block gas flow. Clean gently with a soft brush and ensure connections are tight. Verify the pilot flame is steady and adjust per manufacturer guidelines for safe operation.

What are common issues with the Lochinvar & A.O. Smith 100368388 Pilot Assembly Kit?

  • Weak or unstable pilot flame.
  • Clogging from soot or debris.
  • Gas leakage at connections.
  • Tube misalignment affecting ignition.

Installation Steps

Step 1: Turn off the gas supply and power before starting installation.

Step 2: Remove the old pilot assembly from the water heater carefully.

Step 3: Install the new pilot assembly with tube, aligning it to the burner properly.

Step 4: Connect the gas line securely and check for leaks using a soap solution.

Step 5: Reconnect power and ignite the pilot following manufacturer instructions.

Step 6: Monitor for proper operation before closing access panels.
