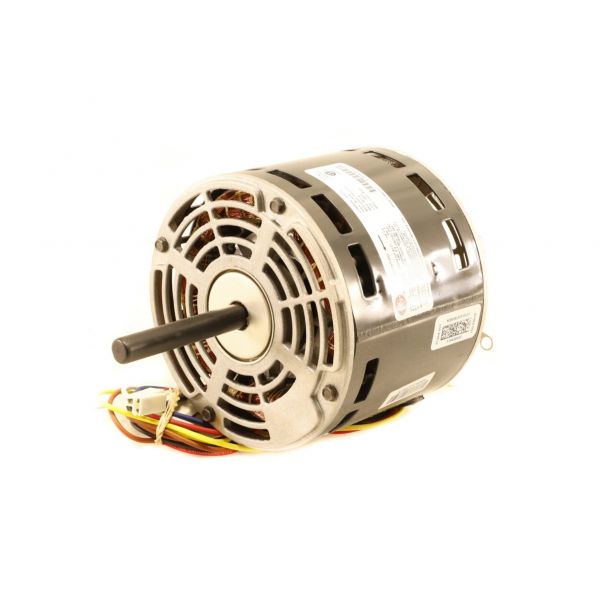

Lennox 35K59 4Seepd Motor 115V 1/3HP 1075RPM

Special Price $234.49 Regular Price $260.28
In stock
SKU
35K59
This Lennox 35K59 4-speed motor is a replacement part for Lennox furnaces and boilers. It is a permanent split capacitor-type motor for horizontal mounting with a belly band clamp. This 1/3 HP motor can provide airflow through your HVAC system at 4 different speeds, up to 1075 RPM. It has a voltage rating of 115V, a shaft size of 1/2" x 3" and a counterclockwise rotation (CCWLE). If your compatible Lennox HVAC system is experiencing reduced airflow and performance, replacing a worn-out motor with the Lennox 35K59 can restore optimal airflow and performance and keep your home comfortable.
Manufacturer:
https://www.partshnc.com/media/catalog/product/3/5/35k59-lennox_partshnc.jpg

Specifications

  • Measure: Units
  • Horsepower: 1/3 HP
  • Diameter: 5.625 Inch
  • RPM: 1075 RPM
  • AMPerage: 6.4A
  • Frequency: 60 Hz
  • Number of Phases: 1 Phase
  • Type of Motor: PSC
  • Number of Speeds: 4 Speed
  • Frame Size: 48
  • Position of Motor Mounting: Horizontal
  • Type of Motor Mounting: Belly Band
  • Voltage: 115V
  • Shaft Size: 1/2 x 3 Inch
  • Capacitor Value: 7.5 MFD 370 VAC
  • Rotation: CCWLE
  • Type of Bearing: Sleeve
  • Weight: 12.22lbs
Manufacturer Name: Lennox
Product Number: 35K59
OEM Part Number: 35K59
Product Description: 115V 1/3Hp 1075Rpm 4Spd Motor
Weight:12.22lbs/5542.89g
