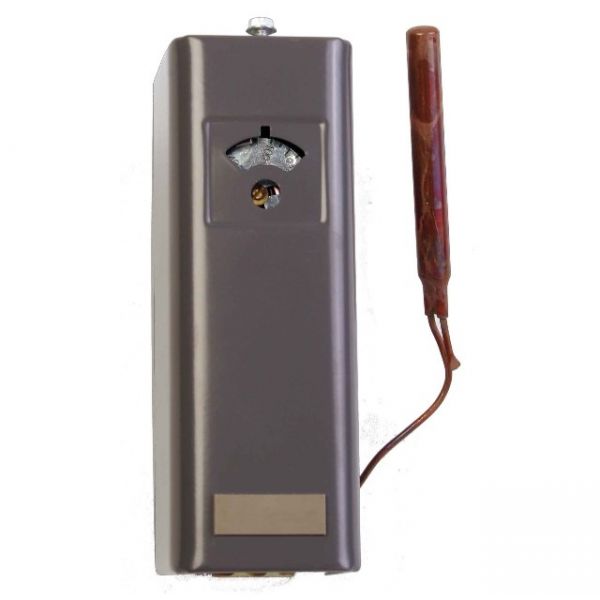

Resideo L6006A1244 Aquastat Controller Circulator Control & High/Low Limit SPDT 100-240°F Range
Special Price $177.35 Regular Price $203.95
In stock
SKU
L6006A1244
The Resideo L6006A1244 is a versatile control unit that is used to regulate temperatures of the liquids in HVAC systems. It is used as a circulator and a high/low limit aquastat to maintain a temperature range of between 100°F and 240°F. The differential temperature setting is adjustable from 5°F to 30°F to allow for customized system performance. This device uses a copper detecting bulb for effective monitoring of liquid temperature. Therefore, when the temperature is high, the aquastat switches on or off the circulator pump in to optimize the system. It has a small size and unsophisticated environment, so it is easy to install and use.
Manufacturer:
Specifications
- Type: Circulator Aquastat
- Temperature Range: 100°F-240°F
- Differential Temperature: 5°F-30°F
- Current Rating: 0.25A
- Voltage: 12 VDC
- Bulb Size: 3/8 Inch x 2-7/8 Inches
- Bulb Length: 2-7/8"
- Bulb Material: Copper
- Dimensions: 2" X 5.63"
- Control Function: Circulator Control and High Limit or Low Limit
- Contact Type: SPDT
- Capillary Length: 3 Inches
