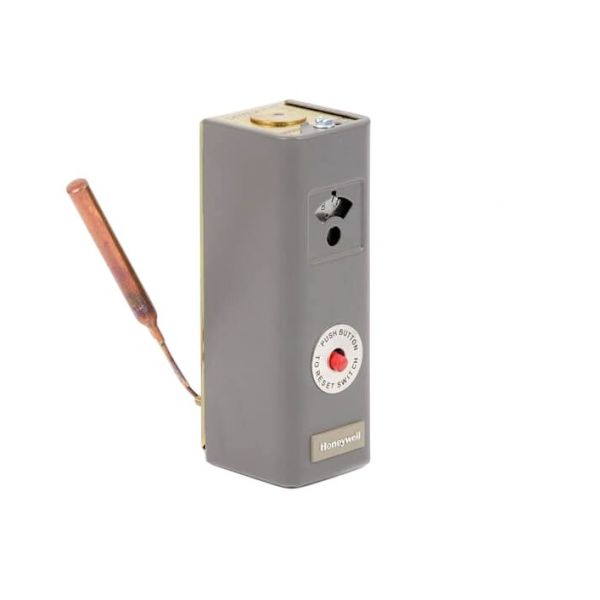

The Resideo L4006E1125 High Limit Aquastat is an essential control for regulating temperature in hot water and hydronic heating systems. Intended for maintaining and regulating the system temperatures, this aquastat helps to maintain your system at the optimal level. It has an SPST switch and performs well by interrupting the power supply when the temperature goes high; the limit set is between 100°F and 200°F. This aquastat has a 2-7/8" copper bulb, which is used to measure the temperature of the water. The switch is activated once the defined temperature limit is attained.
AQUASTAT BREAKS Temperature Rise Resideo L4006E1125
The Resideo L4006E1125 is a high-limit aquastat controller primarily used in boilers, water heaters, and other hydronic systems. It plays a crucial role in maintaining safe and efficient operation by regulating the water temperature within a set range it's a designed to regulate the temperature of liquids in boilers, storage tanks, and other applications. It acts as a safety device by shutting down the heating system if the temperature exceeds a set point, preventing overheating and potential damage.
Features:
Temperature range: 100°F to 200°F (38°C to 93°C)
Open rise operation: The electrical circuit automatically opens as the water temperature reaches the set point, shutting off the heating element and preventing overheating.
Manual reset: After the temperature drops below the set point, the aquastat can be manually reset to resume operation.
Totally enclosed Micro Switch™: Provides reliable and efficient operation with snap-acting switches.
Visible control point scale and external adjustment screw: Easy to adjust to the perfect temperature.
Horizontal or vertical insertion of the sensing element: allows for a wide variety of customizable installation setups.
Direct or well immersion of the sensing element: can be applied in a variety of ways based on the situation.
UL limit rated device: guarantees adherence to industry standards and safety.
Benefits:
Prevents overheating and system damage: The high-limit function protects the system from potential failures caused by excessive temperatures.
Improves energy efficiency: Lowering running expenses and energy usage can be achieved by keeping water at the ideal temperature.
Enhances safety: The manual reset feature allows for safe restart after activation, preventing uncontrolled heating cycles.
Versatile and reliable: The L4006E1125 is suitable for various applications and provides dependable performance.
Signs of a Faulty L4006E1125 AQUASTAT BREAKS Temperature Rise Resideo:
Identifying a faulty Resideo L4006E1125 high-limit aquastat controller is crucial for maintaining the safety and efficiency of your hydronic system.
1. Overheating:
Excessive water temperature: This is the most prominent indicator of a malfunctioning aquastat. If your boiler, water heater, or other system reaches temperatures significantly exceeding the set point, the AQUASTAT BREAKS Temperature Ris L4006E1125 might not be functioning correctly.
Steam build-up: Excessive steam generation could be another sign of the system not regulating temperature properly.
2. System malfunctions:
Frequent boiler cycling: If your boiler repeatedly turns on and off within a short period, it could indicate the aquastat malfunctioning and not accurately regulating the temperature.
Failure to maintain desired temperature: If the system consistently falls below or rises above the desired temperature range, the aquastat might not be controlling the water temperature effectively.
3. Physical signs:
Leaking: Visible leaks around the sensing element or housing could indicate internal damage or a faulty seal.
Corrosion: Rust or corrosion on the aquastat body or sensing element can compromise its functionality and accuracy.
4. Electrical issues:
Blown fuse: If the aquastat's associated fuse is frequently blowing, it could be due to electrical faults within the unit.
Burning smell: A burning smell emanating from the aquastat is a serious warning sign and indicates a potential electrical malfunction.
Remember:
Never attempt to diagnose or repair a faulty aquastat yourself. Always consult a qualified technician for proper inspection and service.
Ignoring signs of a faulty aquastat can lead to serious consequences, including equipment damage, overheating, and even safety hazards.
Additional tips:
Regularly check the water temperature in your system to monitor its performance.
Schedule preventive maintenance checks for your hydronic system, including the AQUASTAT BREAKS Temperature Ris L4006E1125.
Learn the operating handbook and safety precautions for the particular hydronic system and aquastat model that you own.
