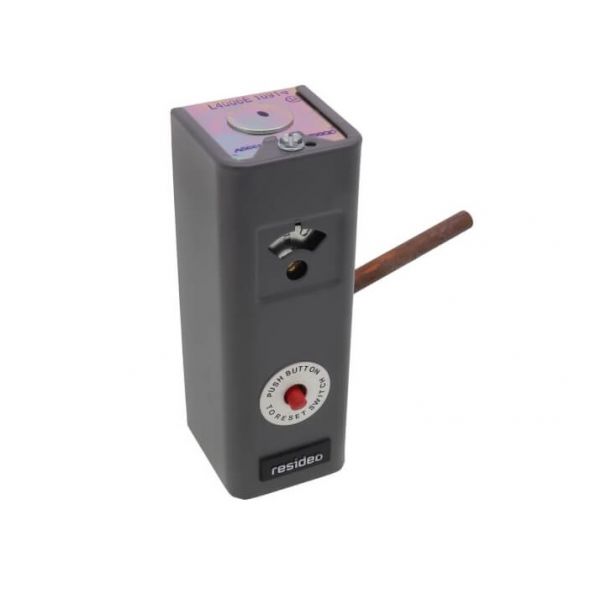

Resideo L4006E1091 High Limit Aquastat Controller M/R 130°-270°F

Special Price $267.06 Regular Price $296.43
In stock
SKU
L4006E1091
The Resideo L4006E1091 High Limit Aquastat is an essential safety device in heating systems keeping track of and maintaining certain temperature levels. The temperature range of this single pole, Single Throw switch type high limit aquastat is 130°F to 270°F. It also has a manual reset mechanism to protect it from overheating. The aquastat has a copper bulb in it that will reliably detect temperature changes and when the predetermined temperature limit is reached, it will activate the switch. This function is essential to prevent overheating of the heating system and to be a safety hazard.
https://www.partshnc.com/media/catalog/product/l/4/l4006e1091.jpg

Specifications

  • Application: High Limit
  • Manual Reset
  • Temperature Range: 130°F to 270°F (54°C to 132°C)
  • Switch Type: SPST
  • Differential Temperature:Manual Reset
  • Bulb Material: Copper

Product Overview:
Monitors heating-medium temperature and triggers a switching response when the selected high-limit threshold is reached. The Resideo L4006E1091 High Limit Aquastat Controller M/R 130°F–270°F is an OEM HVAC temperature control component featuring an adjustable 130°F–270°F range and manual reset operation. It supports high-limit protection in heating systems by controlling the associated circuit according to the selected temperature setting.

Temperature Sensing:
Uses the sensing element to detect changes in heating-medium temperature and transmit the corresponding thermal condition to the aquastat control mechanism. The sensing function provides the temperature input necessary for the controller to recognize changing thermal conditions during operation. This section specifically addresses the sensing element's role in detecting temperature variation rather than explaining the controller's high-limit setting or equipment cycling.

Heating Cycle:
Controls the operating sequence of associated heating equipment when the established temperature limit is reached. The controller's switching action influences whether the heating cycle continues or changes according to the detected limit condition. This function specifically concerns the relationship between the control point and equipment cycling, without repeating the temperature-detection process described under Temperature Sensing.

Replacement Guidelines:
Replace the Resideo L4006E1091 High Limit Aquastat Controller M/R 130°F-270°F when the existing aquastat controller has deteriorated, has been removed during service, or no longer provides adequate temperature-limiting control. Renew the controller during applicable maintenance or component replacement to restore the required high-limit control function and support proper equipment operation.

Common Failure Symptoms:

  • Switching response becomes inconsistent as temperature rises.
  • Manual reset action does not restore normal switching.
  • Electrical contacts fail to change state at the control point.
  • Control response varies during repeated temperature changes.
  • High-limit control does not respond at the expected temperature point.

Equipment Compatibility:
The Resideo L4006E1091 High Limit Aquastat Controller M/R is intended for corresponding heating equipment requiring a high-limit aquastat controller with a 130°F–270°F temperature range. Its application depends on the associated heating system and temperature-control arrangement. Verify the L4006E1091 equipment model and manufacturer’s parts documentation before ordering.

Technical Specifications:
Brand: Resideo
Part Number: L4006E1091
Product Type: High Limit Aquastat Controller
Temperature Range: 130°F-270°F
Reset Type: Manual

Write Your Own Review
You're reviewing:Resideo L4006E1091 High Limit Aquastat Controller M/R 130°-270°F
Your Rating
Customer Questions
What is the Resideo L4006E1091 aquastat used for?

It provides high-limit temperature control in boilers and other liquid-heating systems.

How does the manual-reset function work?

It requires manual resetting after the controller trips due to a high-limit temperature condition.

What happens when the liquid reaches the high-limit setting?

The controller interrupts the control circuit when the sensed liquid temperature reaches the limit.

What signs may indicate a faulty high-limit aquastat?

Unexpected shutdowns, failure to respond to temperature changes, or repeated tripping may indicate a control problem requiring inspection.

How should the L4006E1091 aquastat be inspected?

Check for visible damage and loose connections. Have a qualified technician verify its sensing and safety functions according to the manufacturer's instructions.
