Resideo L4006E1000 High Limit M/R Aquastat Controller 130°F - 270°F
Special Price $169.88 Regular Price $195.37
In stock
SKU
L4006E1000

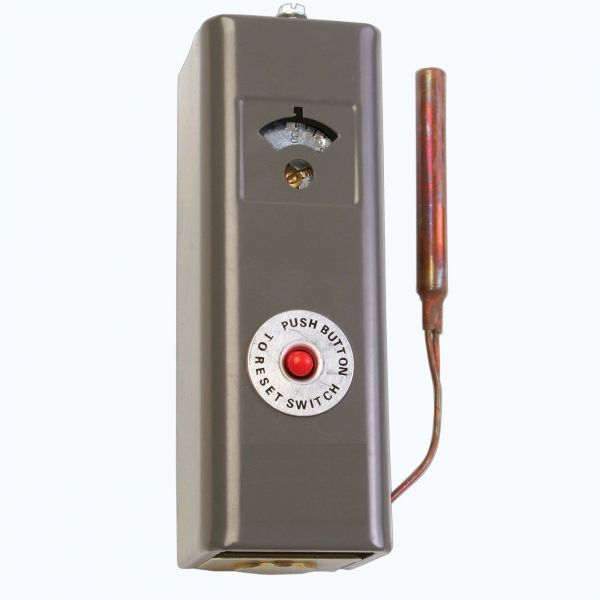

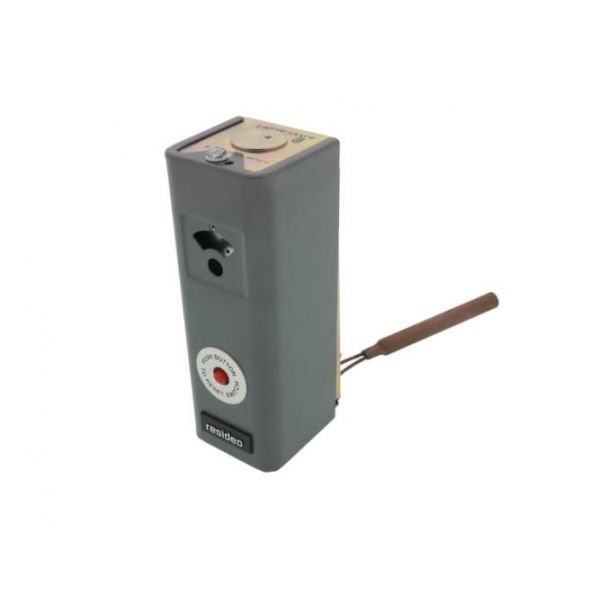

The Resideo L4006E1000 High Limit Manual Reset Aquastat Controller is designed for high-limit applications in hot water and hydronic heating applications. This long-lasting controller with an operating temperature range of 130°F – 270°F and manual reset has the advantage of stopping the system if the temperature goes beyond the set limit. It has a factory set stop at 250°F and is designed to be placed horizontally or vertically. It has metallic finish and, an electrical current rating of 8A at 120VAC and 1.3A at 240VAC. Its SPST switch mechanism opens circuits when temperatures increase, and its well-spud size of 1/2” and capillary length of 1-1/2” guarantee its functionality.
Manufacturer:
Specifications
- Type: Aquastat Controller
- Application: High Limit Control
- Approvals and Standards: AGA Certified, UL Component Recognized- File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
- Colour: Metallic
- Compatible With: Hot Water, Hydronic Heating Systems
- Includes: Stop factory-set at 250°F
- Mounting Type: Horizontal Mount, Vertical Mount
- Differential Temperature: Manual Reset
- Temperature Range: 130°F to 270°F
- Electrical Ratings at Full Load: 8A at 120 Vac, 1.3A at 240 Vac
- Electrical Ratings at Locked Rotor: 48A at 120 Vac, 30.6A at 240 Vac
- Electrical Ratings Millivolt: 0.25 A at 0.25 to 12 Vdc
- Switch Action: SPST, Contacts break on temperature rise
- Well Spud Size: 1/2"
- Capillary Length: 1-1/2"
- Bulb Diameter: 3/8"
- Bulb Length: 2-7/8"
- Dimensions: 2" x 2.13" x 5.63"
- Hazmat Information: UN 1294, TOLUENE, 3, II
