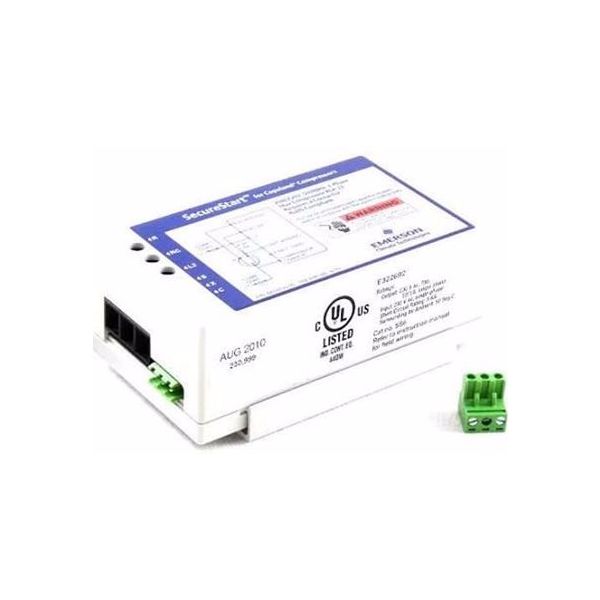

Copeland 943-0120-00 Secure Start Module Kit

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $549.58 Regular Price $610.04
Out of stock
SKU
943-0120-00
The Copeland 943-0120-00 Secure Start Kit is an essential component for improving the dependability and efficiency of HVAC systems. It operates in the single-phase voltage range between 200 and 230 VAC. The Secure Start Kit provides crucial protection by ensuring smoother compressor starts, reducing electrical loading during start-up, and avoiding damage during the first operation. This kit is incorporated into Copeland compressors to prevent electrical surges or hard starts that may lead to expensive repair costs and downtime. Ultimately, the Secure Start Kit ensures that there is greater system reliability; this also means longer service life for HVAC equipment thus making it ideal for use in both residential as well as commercial air conditioning systems.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/0/0/0004401_0.jpeg

Specifications

  • Voltage: 200-230 VAC
  • Phase: Single
  • Height: 3.1"
  • Length: 7.2"
  • Width: 4"

943-0120-00 Copeland SecureStart Module Kit

The 943-0120-00 Copeland known as the SecureStart Module Kit, is specifically engineered for application with Copeland scroll compressors. This innovative kit acts as a safety and performance augmentation system for your compressor, ensuring optimal functionality and longevity. Widely utilized in various HVAC systems, including furnaces, air conditioning units, and heat pumps, the 943-0120-00 Copeland SecureStart Module Kit enhances the overall efficiency of these systems. By providing an extra layer of protection and optimizing startup sequences, it safeguards the compressor against potential issues, minimizing downtime and repair costs.

Key features:

  • Compressor protection: Safeguards against low voltage, in-rush current, and overheating, preventing potential damage to your compressor.
  • Low voltage protection: Monitors voltage supply and automatically shuts down the compressor if it falls below a safe threshold.
  • Delay function: Provides controlled shutdown upon low voltage activation, minimizing stress on the compressor.
  • Reduced stress: By minimizing in-rush current and heat generation, the kit helps prolong the compressor's lifespan and improve efficiency.
  • Smoother operation: Enables smoother compressor start-up, reducing wear and tear on internal components.
  • Start capacitor: Reduces initial high current surge during startup, protecting the compressor from electrical stress.
  • Start relay: Ensures proper connection and disconnection of the start capacitor during the operating cycle.
  • Wiring harness: Facilitates easy and safe installation into your existing system.
    Durable construction: ABS plastic body provides resistance to impact and ensures reliable operation.

Signs of faulty Copeland SecureStart Module Kit

Compressor Issues:

  • Frequent compressor cycling: The compressor starts and stops more frequently than usual, suggesting potential issues with voltage regulation or overheating protection.
  • Compressor malfunction or failure: The compressor might not start at all, hum continuously without running, or trip the system's circuit breaker, indicating internal problems within the SecureStart module or the compressor itself.
  • Reduced cooling capacity: The refrigeration system struggles to maintain desired temperatures, despite the compressor seemingly functioning normally. This could be a sign of reduced efficiency due to a faulty SecureStart module.

Electrical Problems:

  • Sparks or unusual electrical noises: Crackling or buzzing sounds emanating from the SecureStart module area or near the compressor connection could indicate electrical faults within the kit.
  • Burning smell: A burning odor near the SecureStart module or compressor suggests internal overheating or component failure, posing a potential fire hazard.
  • Blown fuses or tripped circuit breakers: Repeated tripping of circuit breakers or blown fuses could indicate overloaded circuits or internal faults within the SecureStart module.

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 2
Write Your Own Review
You're reviewing:Copeland 943-0120-00 Secure Start Module Kit
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Copeland 943-0120-00 Secure Start Module Kit?

Regularly inspect the module for dust, corrosion, or loose wiring connections. Ensure it is securely mounted and protected from moisture. Follow electrical safety precautions when handling the unit. Proper maintenance helps ensure accurate compressor startup and prevents operational interruptions.

What are common issues with the Copeland 943-0120-00 Secure Start Module Kit?

  • Compressor failing to start or delayed startup.
  • Intermittent electrical connection failures.
  • Terminals becoming loose or damaged.
  • Module overheating during operation.

Installation Steps

Step 1: Turn off all power to the HVAC system to ensure safety.

Step 2: Locate the compressor and disconnect existing control wiring as needed.

Step 3: Mount the module in a secure, dry location near the compressor.

Step 4: Connect the module wires according to the wiring diagram provided with the kit.

Step 5: Double-check all connections and ensure no exposed wires.

Step 6: Restore power and test the system to confirm smooth compressor startup.
