The Rheem-Ruud 62-104058-02 Integrated Furnace Control Board is a functional part, which is intended for the regulation of gas furnaces in Rheem as well as Ruud HVAC. Some of the functions handled by this control board entails ignition sequencing, management of gas valves, fan operations, safety components, as well as diagnostics in regard to furnace include a 3 Amp fuse that functions in circuit protection at 24 VAC power frequency of 60 Hz. Such criteria ensure that normal HVAC electrical systems are compatible and reciprocate to fit as planned. As mentioned above, control board gets input information from the different temperature sensors, pressure switches and thermostat.

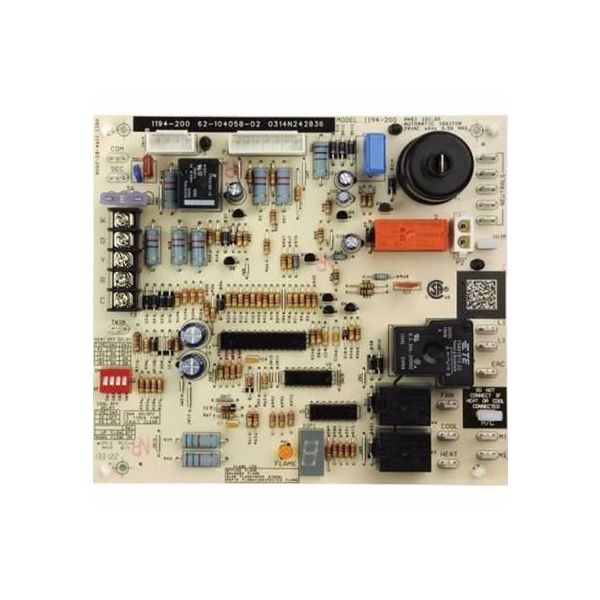

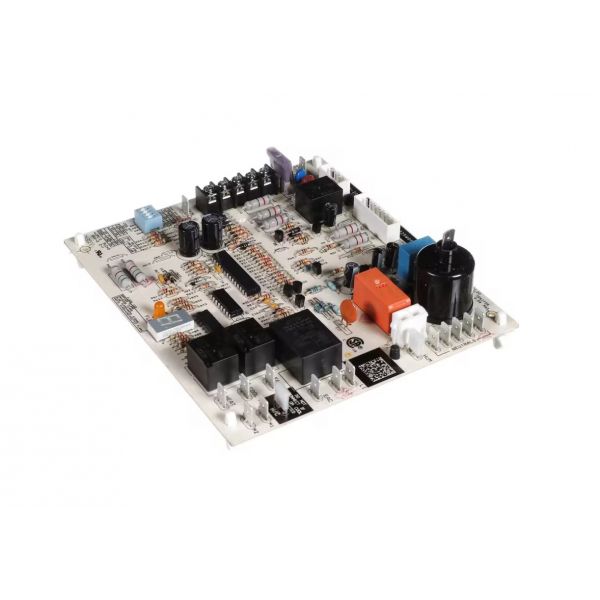

Rheem-Ruud 62-104058-02 Integrated Furnace Control
The Rheem-Ruud 62-104058-02 Integrated Furnace Control is a sophisticated control unit that improves the performance and efficiency of heating systems. With its advanced features, this control module integrates seamlessly with various furnace models, ensuring dependable operation and precise temperature control. Its adaptable design allows for easy installation and compatibility with a wide range of heating systems, making it a great choice for both residential and commercial applications. The integrated design streamlines the control process, increasing system efficiency while decreasing energy consumption. With diagnostic capabilities, the control module can quickly identify and troubleshoot potential problems, reducing downtime and maintenance costs. Its user-friendly interface simplifies operation and configuration, allowing users to tailor settings to their specific heating needs. The Rheem-Ruud 62-104058-02 Integrated Furnace Control is a dependable choice for optimizing comfort and energy efficiency in heating systems due to its long-lasting construction and consistent performance.
Key Features for62-104058-02 Rheem-Ruud Integrated Furnace Control
Function: This circuit board is the brain of your Rheem-Ruud furnace. It controls various furnace operations, including ignition, gas flow, burner operation, blower fan, and safety features.
Compatibility: It's specifically designed for Rheem-Ruud furnaces, but the exact compatible models might require referring to Rheem-Ruud documentation or contacting their support.
Diagnostics: Some models might have built-in diagnostic features that help technicians identify malfunctions within the furnace system.
Safety Features: The IFC likely plays a crucial role in safety features like flame safeguard and overheating protection.
Signs of a Faulty Rheem-Ruud 62-104058-02 Integrated Furnace Control:
Inconsistent Heating: If you notice that your furnace isn't maintaining a consistent temperature or is cycling on and off frequently, it could indicate a problem with the control module.
No Heat Output: If your furnace isn't producing any heat at all, the control module could be malfunctioning and failing to send signals to ignite the burner or activate the blower motor.
Ignition Issues: Difficulty in starting the furnace or frequent failure to ignite can be a sign of a faulty control module. This could manifest as a clicking sound without the burner igniting or repeated attempts to start the ignition sequence.
Erratic Behavior: Any unusual behavior from the furnace, such as the blower running continuously or strange noises during operation, might indicate a problem with the control module regulating the system's functions.
Choose the best HVAC equipment parts and supplies from PartsHnC!
What maintenance is required for the Rheem-Ruud 62-104058-02 Control Board?
Inspect the board periodically for dust, corrosion, or loose connections that can affect performance. Clean with compressed air and ensure all wiring is secure. Always disconnect power before handling and avoid moisture to prevent electrical damage.
What are common issues with the Rheem-Ruud 62-104058-02 Control Board?
Control board failures or short circuits.
Weak wiring connections.
Error codes or system lockouts.
Intermittent or unresponsive furnace operation.
Communication problems with sensors or thermostats.
Installation Steps
Step1: Turn off power to the furnace at the breaker to ensure safety.
Step2: Open the furnace access panel to locate the existing control board.
Step3: Carefully disconnect all wiring and remove the old board, noting connections.
Step4: Mount the new control board in place.
Step5: Reconnect all wires exactly as labeled.
Step6: Close the access panel and restore power.
Step7: Test furnace operation to confirm proper installation.
