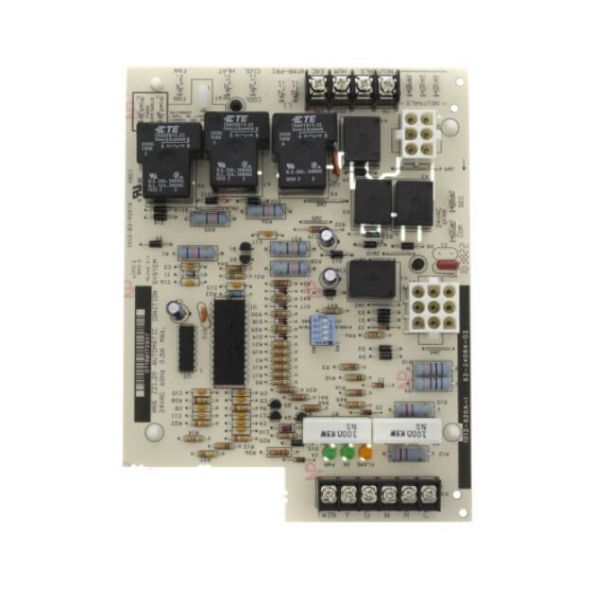

main product photo

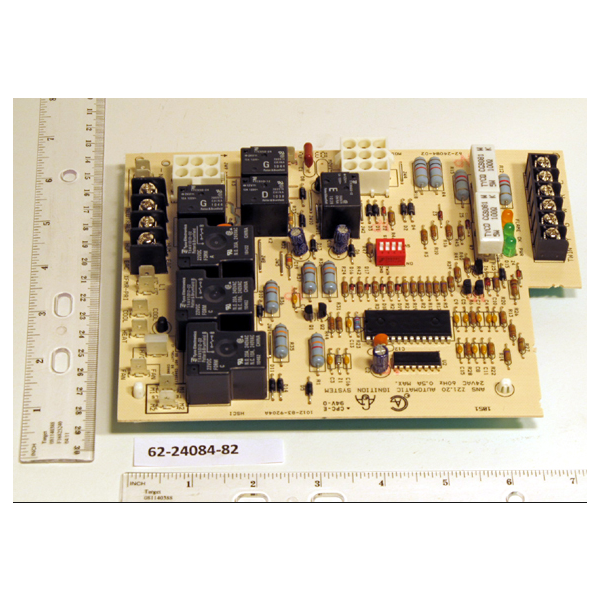

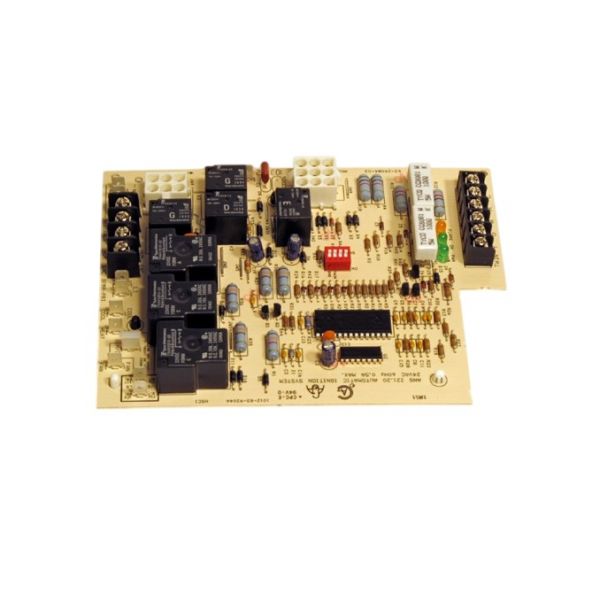

Rheem-Ruud 62-24084-82 Integrated Furnace Control Board

Be the first to review this product
Special Price $284.58 Regular Price $315.89
In stock
SKU
62-24084-82
The Rheem-Ruud 62-24084-82 Integrated Furnace Control Board is an essential part that controls the operations of the gas furnaces in HVAC units. This control board has a dimension of 7 5/8” x 5 3/4” and it uses 24V voltage and 60Hz frequency and the maximum ampere that it can take is 0. 5. This integrated control board controls various operations of a furnace such as ignition, blower operation and temperature. It helps to maintain a certain level of efficiency of the furnace by controlling several components in real time. The integration of the control board leads to better management of the heating system since the board allows for better performance and reliability.
Add to Wish List
Ruud Furnace Parts, HVAC Controls & Electrical
Manufacturer:
https://www.partshnc.com/media/catalog/product/6/2/62-24084-82_1.jpg

Specifications

  • Type: Integrated Furnace Control Board
  • Voltage: 24V
  • Frequency: 60Hz
  • Amperage: 0.5 Max
  • Board Dimensions (LxW): 7 5/8" x 5 3/4"
  • Weight: 0.79 Lbs
Manufacturer Name: Rheem-Ruud
Product Number: 62-24084-82
OEM Part Number: 62-24084-82
Product Description: Integrated Furnace Control
Weight:0.79lbs/358.34g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Rheem-Ruud 62-24084-82 Integrated Furnace Control Board
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Rheem-Ruud 62-24084-82 Integrated Furnace Control Board?

Inspect the control board periodically for loose wire connections, corrosion, dust buildup, or signs of overheating. Keep the furnace compartment clean and dry to prevent electrical issues. Verify all terminal connections are secure and check diagnostic LEDs for fault indications. Always disconnect power before performing any inspection or service.

What are common issues with the Rheem-Ruud 62-24084-82 Integrated Furnace Control Board?

  • Furnace failing to ignite or complete startup cycles.
  • Diagnostic LED error codes or flashing fault indicators.
  • Blower motor running continuously or not operating correctly.
  • Loss of communication with ignition or safety components.
  • Intermittent heating operation and unexpected system lockouts.
  • No power output to ignitor or connected furnace controls.

Installation Steps

Step 1: Turn off electrical power to the unit and confirm the system is fully de-energized before starting.

Step 2: Remove the access panel carefully.

Step 3: Disconnect all wiring harnesses from the existing control board carefully.

Step 4: Remove mounting screws and take out the old control board from its bracket.

Step 5: Position the new control board and secure it firmly in place.

Step 6: Reconnect wiring to matching terminals, restore power, then run a system test cycle to confirm proper operation.
