IBC TECHNOLOGIES P-771 Ignition Module HC/DC Series

Be the first to review this product
Special Price $63.33 Regular Price $72.83
In stock
SKU
P-771

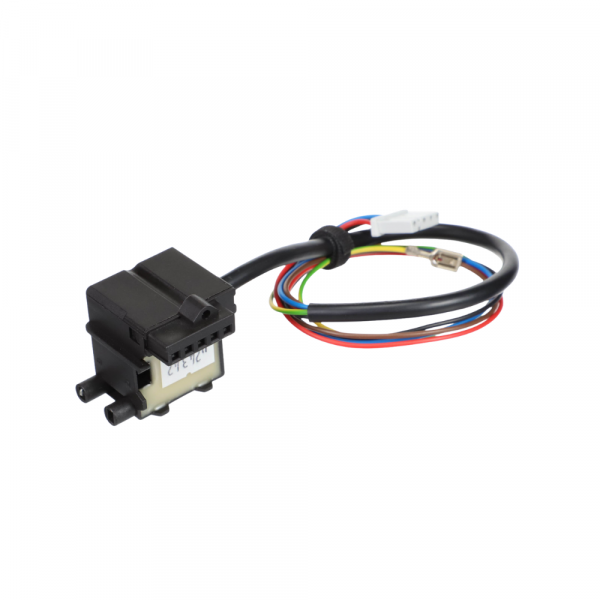

The IBC Technologies P-771 Ignition Module HC/DC Series is an electronic control part that produces and controls the ignition sequence of combustion burners. It supplies the required voltage needed to start spark or hot-surface ignition and detects the presence of flames to continue operation. The module is fitted in the compartment of the combustion control, where it is connected with electrodes, flame sensors, and the system control board in HVAC systems that have built-in combustion stages by synchronizing the supply of fuel in compatible heating systems.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
Write Your Own Review
You're reviewing:IBC TECHNOLOGIES P-771 Ignition Module HC/DC Series
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the IBC TECHNOLOGIES P-771 Ignition Module?

Regularly inspect the ignition module for dust, corrosion, or loose wiring. Ensure all connectors are securely attached and clean. Proper maintenance ensures accurate ignition and safe operation. Always disconnect power before servicing the module.

What are common issues with the IBC TECHNOLOGIES P-771 Ignition Module?

  • No ignition signal or delayed ignition.
  • Connector pins worn or poorly seated.
  • Internal circuitry malfunctioning.
  • Module not responding to control commands.

Installation Steps

Step 1: Turn off all power to the burner system to prevent electric shock or accidental ignition.

Step 2: Mount the ignition module securely in the control panel or designated bracket.

Step 3: Connect the module terminals to the burner control circuit following the wiring diagram.

Step 4: Ensure proper grounding of the module to avoid electrical hazards.

Step 5: Verify all connectors are fully seated and secured.

Step 6: Restore power and test the ignition sequence, observing safe distance from the flame.
