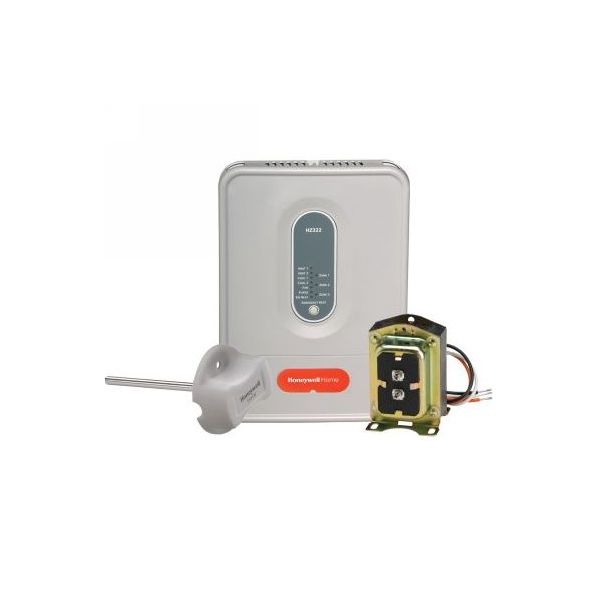

The Resideo HZ322K Panel Kit with True Zone controls climate operations in multi-zone HVAC systems through optimal airflow management capabilities. The zoning panel operates together with specific thermostats to regulate temperature zones while minimizing energy waste. This works with conventional, heat pump and dual-fuel systems to achieve higher efficiency through reduced heating and cooling operations. The system offers a easy setup process and operational controls which produces improved equipment performance along with increased system life expectancy. This offers perfect performance for residential housing together with light commercial uses and it delivers temperature stability and better heating ventilation air conditioning efficiency.
The Resideo HZ322K is a 3-zone conventional or 2-zone heat pump control panel designed for residential and light commercial applications. It gives you easy and effective control over your heating and cooling system, enabling you to independently adjust the temperature in up to three different zones. It can handle up to 3 zones (2 heating/2 cooling) or 2 zones (2 heating/1 cooling) for heat pumps.
Key Features:
General features:
Compatible with: Systems that are conventional and heat pump (up to 2 heat, 2 cool)
Number of zones: Up to 3 zones
Display: Intuitive digital display with real-language prompts
Installation: Easy-to-follow, four-step installer setup process
Control: Variable-speed fan control and discharge air temperature staging
Wireless compatibility: RedLINK™ enabled for wireless operation with optional THM4000R1000 adapter
Additional benefits:
Smaller footprint: Compact design makes it suitable for various installations.
Common-sense LEDs: LED indicators that are simple to read and comprehend for rapid status checks.
Standard checkout procedure: Streamlined setup process for faster installations.
Robust push terminals: Secure and reliable wire connections.
Typical applications:
Single-family homes with up to 3 zones (bedrooms, living area, basement etc.)
Conventional heating and air conditioning systems
Heat pump systems with a maximum of two heating stages and one cooling stage
Signs of a Faulty Resideo HZ322K 3Zonepanel,Sensor&Trnsfmrkit:
Display issues:
Blank or flickering display: This could indicate a power supply problem, a faulty display component, or a loose connection.
Erratic or incorrect readings: Inaccurate temperature or zone information might suggest sensor issues, wiring problems, or internal circuit board malfunctions.
Dim or hard-to-read display: This could be a sign of backlight problems or display wear and tear.
System control issues:
Zones not responding or heating/cooling unevenly: This might indicate problems with zone sensors, wiring, or control relays within the panel.
System failing to start or maintain desired temperatures: This could be due to faulty system connections, incorrect settings, or internal control board issues.
Unexpected system shutdowns or restarts: This could be a sign of power fluctuations, loose connections, or internal component malfunctions.
Other potential signs:
Unusual noises: Buzzing, clicking, or humming sounds coming from the panel might indicate electrical issues or component strain.
Physical damage: Visible cracks, burns, or water damage on the panel could compromise its functionality and safety.
Error codes: The panel might display specific error codes that provide clues about the nature of the problem. Consult the Resideo manual or online resources for deciphering these codes.
