HTP 7855P-217 Control Board EFTC-UFTC-140W

Rating:
5 5 3
3  Reviews Add Your Review
Special Price $438.56 Regular Price $486.80
In stock
SKU
7855P-217

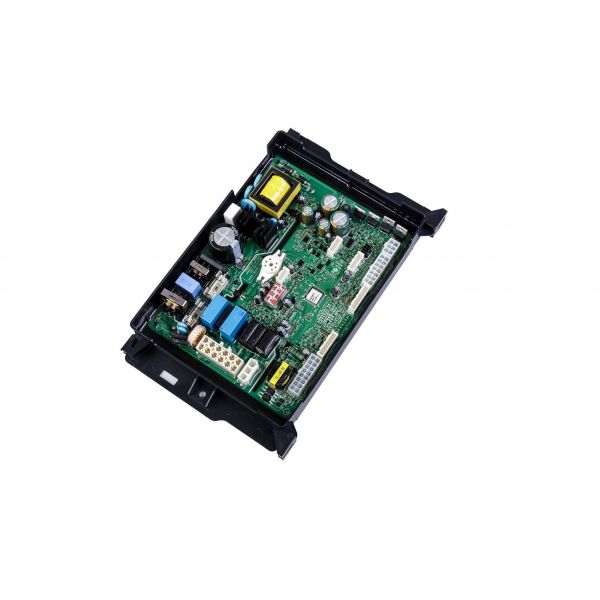

The HTP 7855P-217 Main Control Board is an electronic control component used in coordinating the sequences of operations and safety monitoring of the heating equipment in HVAC systems. It operates using integrated circuitry, which receives signals provided by temperature sensors, pressure switches, and safety elements and sends commands to ignition components, pumps, and fans. It operates in EFTC and UFTC-140W-boiler hydronic HVAC systems. It is installed within the control compartment of the equipment, which contains wiring harnesses that are attached to the corresponding terminals, and power supply circuits. This controls ignition timing and signal operating conditions and controls connected components.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/7/8/7855p-217.jpg
Write Your Own Review
You're reviewing:HTP 7855P-217 Control Board EFTC-UFTC-140W
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the HTP 7855P-217 Control Board?

Regularly inspect the control board for dust, corrosion, or loose connections. Keep the surrounding area clean and dry to prevent short circuits. Check for firmware updates if applicable and ensure proper voltage supply. Proper maintenance ensures reliable operation and prevents electrical hazards.

What are common issues with the HTP 7855P-217 Control Board?

  • Failure to operate connected components.
  • Burnt or damaged electronic components.
  • Erratic or intermittent system performance.
  • Loose or corroded wiring connections affecting functionality.

Installation Steps

Step1: Turn off power to the unit at the breaker and confirm it’s off.

Step2: Remove the access panel to expose the existing control board area.

Step3: Label or photograph wire connections then disconnect all harnesses and screws.

Step4: Remove the old control board and install the new one in the same orientation.

Step5: Secure with screws and reconnect all wiring to matching terminals.

Step6: Replace the panel, restore power, and test the system for proper operation.
