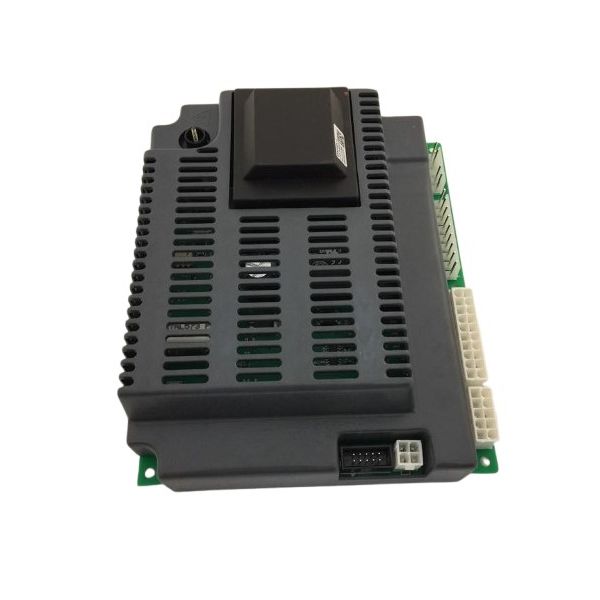

main product photo

HTP 7500P-1101 Programmed Control Board 926 MC-80

Rating:
5 5 1
1  Review Add Your Review
Special Price $445.27 Regular Price $494.25
In stock
SKU
7500P-1101
The HTP 7500P-1101 Programmed Control Board is an electronic controller that controls the sequencing operational and safety monitoring of heating equipment. It operates on an integrated microprocessor and circuit network which processes signals received by temperature sensors, pressure switches, and other control inputs and sends commands to ignition components, pumps, and fans as it operates within MC-80 boiler and hydronic HVAC systems on the 926 programmed control platform. The board is located in the equipment control compartment and is connected to system wiring terminals. Constant signal processing synchronizes the ignition timing, tracks the condition of the system and controls the activity of the components.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/7/5/7500p-1101.jpg
Write Your Own Review
You're reviewing:HTP 7500P-1101 Programmed Control Board 926 MC-80
Your Rating
Product Questions (1)
Customer Questions
What maintenance is required for the HTP 7500P-1101 Programmed Control Board?

Periodically inspect the control board for dust and corrosion. Ensure all connectors are seated firmly and free of debris. Check for any signs of burnt components or wiring. Proper maintenance helps prevent control errors and ensures reliable system operation.

Installation Steps

Step 1: Turn off power to the appliance at the breaker to ensure safety.

Step 2: Remove the access panel to access the existing control board.

Step 3: Disconnect all wiring from the old board, labeling connections if needed.

Step 4: Unmount the old board and securely install the new control board.

Step 5: Reconnect all wiring according to labels.

Step 6: Restore power and test appliance operation; avoid touching live terminals.
