HTP 7500P-093 Gas Valve Swirl Plate Grey

Special Price $62.20 Regular Price $71.53
In stock
SKU
7500P-093
The HTP 7500P-093 Gas Valve Swirl Plate controls the pattern and direction of gas entering the burner assembly by influencing the movement of fuel through the valve passage in HVAC systems. Its grey exterior identifies the specified swirl-plate configuration for the compatible gas valve. Positioned inside the valve assembly, it redirects incoming gas around the internal passage to establish the intended flow before combustion. The plate works with the surrounding valve components to maintain the required fuel distribution toward the burner. This controlled gas movement establishes the specified flow pattern needed for consistent fuel delivery during the combustion sequence.
Manufacturer:

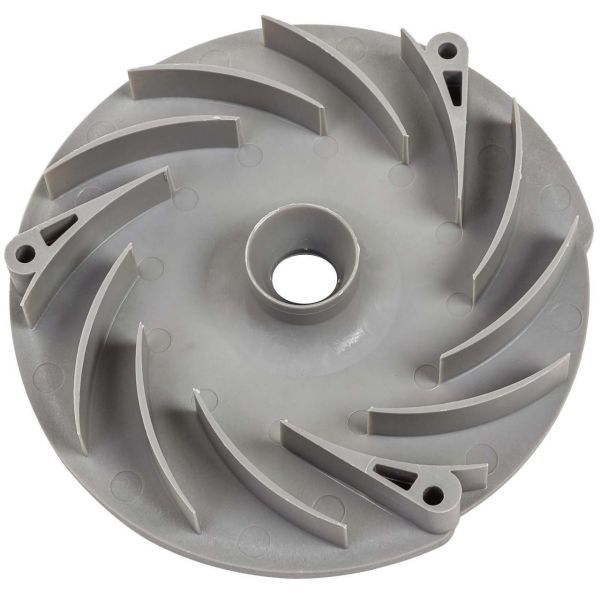

https://www.partshnc.com/media/catalog/product/7/5/7500p-093.jpg

Product Overview:
Within the burner air-intake housing of high-efficiency hydronic boilers, static mixing components help structure incoming combustion air before fuel delivery. The HTP 7500P-093 Gas Valve Swirl Plate Grey functions as an air-channeling insert positioned at the gas valve or blower entry interface. Designed for HTP boilers, this component uses fixed guide geometry to shape the intake airstream as it enters the mixing assembly. By establishing precise entry airflow, the grey swirl plate supports proper flame stability and consistent burner operation throughout the heating cycle.

Airflow Channeling:
Through its fixed angled vanes, the swirl plate redirects incoming air from the combustion blower into a controlled swirling pattern. The vane geometry changes the straight airflow as it enters the mixing housing and establishes a more uniform flow profile before fuel admission. This arrangement guides air through the intake passage toward the downstream combustion area.

Burner Air Management:
Within the equipment operating sequence, the component maintains consistent air-intake geometry to support steady burner performance across varying firing demands. It operates in conjunction with the combustion blower and gas valve interface, ensuring the incoming air stream enters the mixing zone at the intended angle. By maintaining clean, unobstructed air delivery to the mixing assembly, the plate prevents localized air starvation and supports continuous, stable flame characteristics during active boiler heating calls.

Replacement Guidelines:
Replacement of the swirl plate is appropriate when physical cracking, surface degradation, thermal distortion, or broken guide fins alter its fixed airflow geometry. For HTP 7500P-093, relevant conditions may include fractured internal vanes or severe debris buildup that restricts the air passages and affect proper intake-air conditioning. Replacing the HTP component restores the intended airflow channeling within the burner assembly.

Common Signs of Wear:

  • Visible cracks or structural fractures along the outer rim or body
  • Warped or distorted internal air-channeling vanes
  • Broken, chipped, or missing guide fins
  • Heavy surface contamination or persistent debris accumulation inside air channels
  • Loose fit or degraded mounting alignment within the intake assembly

Equipment Compatibility:
The HTP 7500P-093 Gas Valve Swirl Plate Grey is used with applicable HTP boilers. Before purchasing, verify the equipment model and existing part number.

Technical Specifications:
Brand: HTP
Part Number: 7500P-093
Product Type: Gas Valve Swirl Plate
Color: Grey

Write Your Own Review
You're reviewing:HTP 7500P-093 Gas Valve Swirl Plate Grey
Your Rating
Customer Questions
What maintenance is required for the HTP 7500P-093 Swirl Plate?

Periodically inspect the swirl plate for carbon buildup or debris that can affect gas flow. Ensure it remains properly seated and free of corrosion. Clean gently if necessary and check adjacent valve connections. Proper care helps maintain efficient combustion and safe operation.

How does the HTP 7500P-093 Swirl Plate control airflow within the combustion assembly?

It redirects incoming air into a controlled flow pattern before the air reaches the combustion area.

How do the angled vanes on the HTP 7500P-093 Swirl Plate affect airflow?

The angled vanes redirect straight incoming airflow and create a more controlled swirling air pattern within the mixing passage.

How does the HTP 7500P-093 Swirl Plate support the combustion assembly?

It conditions incoming airflow before fuel admission, helping establish the controlled air structure used by the downstream combustion assembly.

Where is the HTP 7500P-093 Swirl Plate positioned in compatible boiler equipment?

It is positioned within the combustion or mixing assembly near the burner-side airflow and fuel-delivery components.

How should the HTP 7500P-093 Swirl Plate be maintained?

The swirl plate should be inspected as part of appropriate combustion-assembly servicing when equipment operation indicates an airflow or combustion-related issue. Specific servicing should follow the applicable manufacturer documentation.

Installation Steps

Step 1: Turn off the gas supply and power to the appliance.

Step 2: Remove the access panel to reach the gas valve assembly.

Step 3: Carefully detach the existing swirl plate from the valve.

Step 4: Install the new swirl plate, ensuring correct orientation.

Step 5: Reconnect any components previously removed.

Step 6: Restore gas and power, then test appliance operation.
