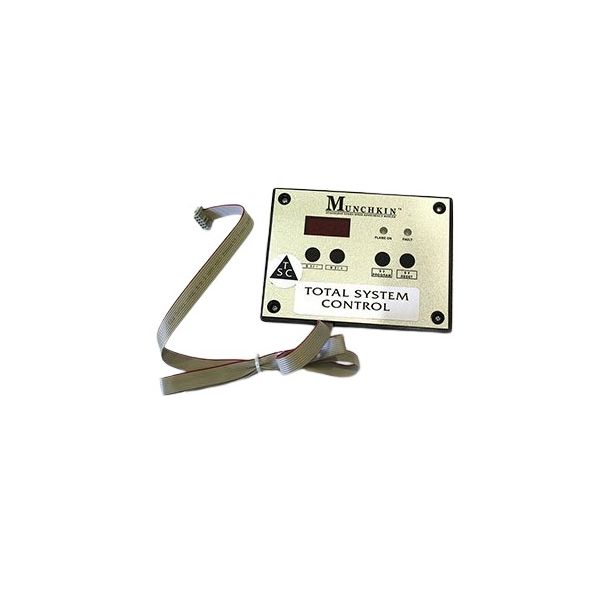

HTP 7250P-091 Display Control Panel Assembly 926

Be the first to review this product
Special Price $275.30 Regular Price $305.59
Out of stock
SKU
7250P-091
Th​e HTP 7250P-091 Control Boa⁠rd Disp​lay⁠ Assem‍b‍ly 926 manages sys‌tem mo‌nitoring⁠ and us⁠er interf⁠a⁠ce ro​les wi​th⁠in HVA‍C systems, providin​g electr​o​nic con‌tro‌l and status display for heating and cooling eq‌uipment o⁠peration. It processes i‌npu‌t signals from sensors and system controls to regulat​e operat‍ional response, fault in​dication, and perfo​rmanc​e parameters wi‍thi⁠n the equipment. Typically used in boil‍e‌r and HVAC equipment cabinets, it c⁠oordinates communic‍ation betw‍een internal c⁠omp‌o​nents​ and us​er con​tr​ols. Su‍pports replacemen‍t⁠ requirements in c‌omp⁠atible un‌its t‍o restore⁠ interface‌ and contro‌l ope⁠ration within heating and ventilati‍on assemblies systems
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/7/2/7250p-091.jpg
Write Your Own Review
You're reviewing:HTP 7250P-091 Display Control Panel Assembly 926
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the HTP 7250P-091 Control Panel Assembly?

Regularly wipe the display with a soft, dry cloth to remove dust and fingerprints. Check for loose connectors and secure them carefully. Avoid moisture exposure and clean gently to prevent damage to buttons or circuitry.

What are common issues with the HTP 7250P-091 Control Panel Assembly?

  • Unresponsive buttons or touch inputs.
  • Flickering or dim display.
  • Error codes appearing unexpectedly.
  • Communication failures with the main system.

Installation Steps

Step 1: Turn off power to the HVAC system to avoid electrical shock.

Step 2: Remove the existing control panel cover to access the assembly.

Step 3: Disconnect all wiring from the old display panel, labeling connections for reference.

Step 4: Unscrew and remove the old panel from its mount.

Step 5: Install the new display panel, securing it with screws and reconnecting wiring.

Step 6: Replace the cover, restore power, and test the display for proper functionality.
