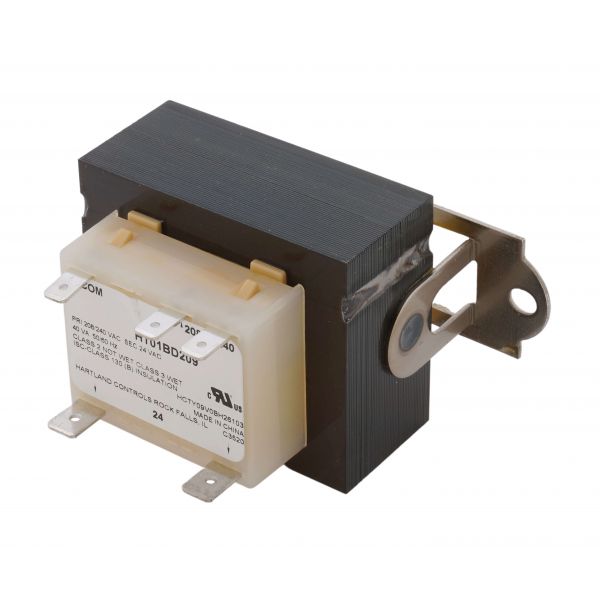

main product photo

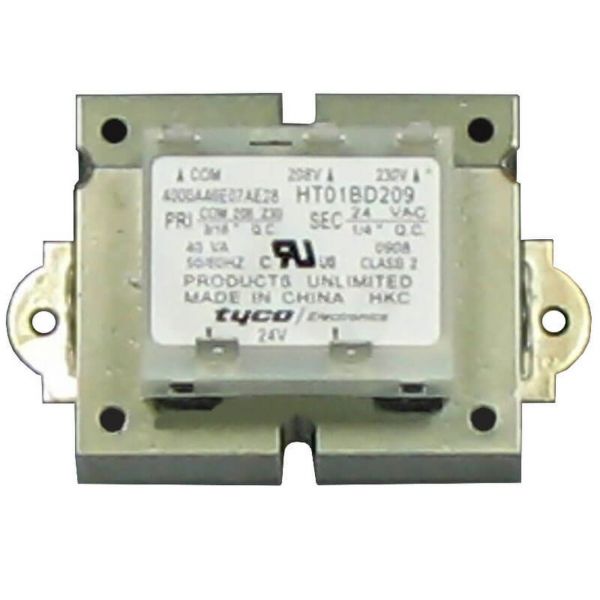

Carrier HT01BD209 Transformer 208-230V PRI 24 VAC SEC 40 VAC

Be the first to review this product
Special Price $48.05 Regular Price $53.44
In stock
SKU
HT01BD209
The Carrier HT01BD209 Transformer is a must have part for HVAC systems, converting electrical energy from one voltage to another. The instrument is 3.5" long, 2.2" wide, and 1.9" high, with a cubic capacity of 0.0085". It has a frequency of 50/60 Hz, voltage amp rating of 40 VA, primary and secondary voltages of 208/230 VAC and 24 VAC, respectively. Its small size and accurate make it a favorite among HVAC, and because it fits, it is seamless and will last longer.
Add to Wish List
HVAC Controls & Electrical, Transformers
Manufacturer:
https://www.partshnc.com/media/catalog/product/h/t/ht01bd209.jpg

Specifications

  • Length: 3.5 "
  • Width: 2.2 "
  • Height: 1.9 "
  • Frequency: 50/60 Hz
  • Voltage Amp Rating: 40 VA
  • Primary And Secondary Voltage: 208/230 VAC and 24 VAC
  • Weight: 1.32 Lbs
Manufacturer Name: Carrier
Product Number: HT01BD209
OEM Part Number: HT01BD209
Product Description: 208/230V-Pri 24V-Sec 40Va
Weight:1.32lbs/598.74g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Carrier HT01BD209 Transformer 208-230V PRI 24 VAC SEC 40 VAC
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Carrier HT01BD209 Transformer?

Perform regular inspection of wiring connections and ensure terminals are tight and corrosion-free. Keep the transformer clean and free of dust buildup to prevent overheating. Verify input and output voltages periodically and ensure proper grounding for safe operation.

What are common issues with the Carrier HT01BD209 Transformer?

  • Voltage output fluctuations under load.
  • Overheating due to poor ventilation or overload.
  • Loose or corroded terminal connections causing intermittent power.
  • Insulation breakdown leading to short circuits.

Installation Steps

Step 1: Turn off all electrical power to the HVAC system and confirm no voltage is present.

Step 2: Remove access panel and label all primary and secondary wiring connections.

Step 3: Disconnect old transformer and remove mounting hardware carefully.

Step 4: Install new transformer in the same position and secure firmly to secure vibration.

Step 5: Reconnect primary and secondary wires according to labels and wiring diagram.

Step 6: Restore power and check correct output and proper control system operation.
