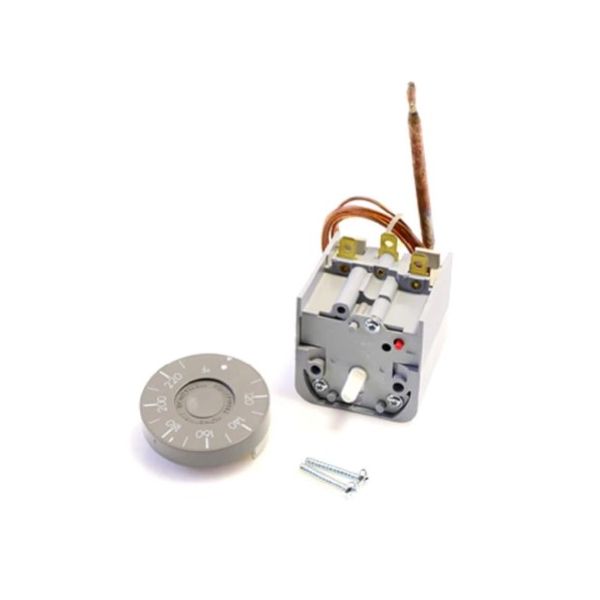

Lochinvar / A.O. Smith 100208174 High Limit Switch Manual Reset 5' Capillary, L6189C2023

Lochinvar & A.O. Smith 100208174 Hi limit switch

The Lochinvar & A.O. Smith 100208174 is a High Limit Switch Kit with Manual Reset for specific Power-Fin® models PB/PF 1501, 1701, and 2001 heating boilers and hot water supply boilers. It is essential to maintain these systems' safe and effective functioning. Ensures safety by shutting off the power to the heating element when the water temperature reaches a critical level, preventing overheating and potential equipment damage. This High Limit Switch Kit plays a crucial role in ensuring the safe operation of your water heater or boiler. It serves as a safety precaution by turning off the heating element on its own when the water temperature rises too high.

Key features:

Safety and Protection:

• Overheating prevention: Automatically shuts down the boiler burner when water temperature exceeds a pre-set safe limit (around 200°F to 210°F depending on the model), preventing overheating and potential damage to the boiler and surrounding components.
• Safety hazard mitigation: Protects against potential leaks, fire, and safety hazards associated with excessive boiler temperature.
• Durable construction: Built to withstand high temperatures and operating pressures for reliable long-term performance.

Functionality:

• Temperature monitoring: Continuously monitors the boiler water temperature through a sensor within the switch.
• Automatic shutoff: Triggers a swift shut-off of the boiler burner in case of overheating.
• Manual reset: Allows for convenient restarting of the boiler after the temperature cools down and the cause of overheating is addressed. This feature avoids the need for a complete system shutdown and manual reset at the electrical panel.

Compatibility and Installation:

• Specific model compatibility: Designed for specific Power-Fin® models PB/PF 1501, 1701, and 2001 boilers. Always verify compatibility with your exact boiler model before purchase.
• Professional installation recommended: Replacing the high-limit switch requires knowledge of boiler systems and electrical connections. It is advised to seek out expert installation from a licensed specialist.

Additional benefits:

• Peace of mind: Assures safe and efficient boiler operation, minimizing the risk of costly repairs or system failures.
• User-friendly: Manual reset offers convenient control over restarting the boiler after addressing the overheating issue.

Remember:

• Regular boiler maintenance and inspection are crucial for ensuring the high-limit switch 100208174 functions properly and the boiler operates safely.
• If you suspect a malfunction with the high limit switch or experience overheating issues, stop using the boiler immediately and contact a qualified technician for diagnosis and repair.

Sings of faulty Hi limit switch 100208174 Lochinvar & A.O. Smith:

Boiler operation issues:

• Frequent boiler shutdowns: If your boiler shuts down unexpectedly and frequently, especially shortly after starting, it could be due to a faulty high-limit switch tripping prematurely.
• Manual reset required often: If you need to manually reset the high-limit switch frequently to get the boiler running, it suggests the switch might be malfunctioning.
• Boiler not reaching desired temperature: If the boiler struggles to reach or maintain the set temperature, a faulty high-limit switch might be preventing it from operating at full capacity.

Temperature and pressure indicators:

• Unusual water temperature readings: Observe the boiler's temperature gauge or display. If the water temperature consistently surpasses the normal operating range before the switch trips, it might be faulty.
• Steam discharge or leaks: If you notice excessive steam discharge or leaks around the boiler, it could be a sign of overheating due to a malfunctioning high limit switch.
• Hissing or banging noises: Unusual sounds like hissing or banging from the boiler could indicate issues with water pressure or overheating, potentially related to a faulty high-limit switch.

Other potential signs:

• Burning odor: A faint burning smell emanating from the boiler might indicate overheating or electrical issues, potentially linked to the high limit switch.
• Error codes or indicator lights: Consult your boiler's manual for specific error codes or indicator light meanings that might point to a faulty high-limit switch.

Remember:

• These are just some potential signs, and the specific symptoms may vary depending on the severity of the problem and your boiler model.
• Stop using the boiler right once and get in touch with a skilled professional for diagnosis and repair if you suspect a malfunctioning high-limit switch. If you lack the required skills, do not try to reset or fix the switch yourself.
• Ignoring these warnings can lead to further damage to your boiler, potential safety hazards, and costly repairs.
