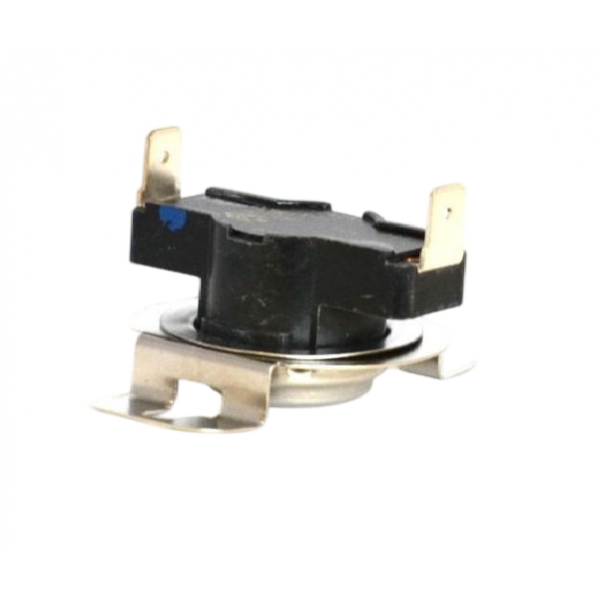

HEATSTAR E50102 Limit Thermostat

Special Price $99.00 Regular Price $100.00
In stock
SKU
E50102
The Heatstar E50102 Limit Thermostat is a temperature-responsive secure control that monitors heat conditions within heating equipment and changes its electrical state when the sensed temperature reaches its designated limit. It monitors operating temperatures and interrupts the heating sequence when conditions exceed the preset secure limit. The thermostat is installed and connected to wiring and related control components to regulate equipment response within HVAC systems. It acts as a protective control by detecting excessive heat conditions and allowing connected equipment to stop operation when necessary, safeguarding internal assemblies during abnormal temperature situations while maintaining the intended safety sequence throughout regular heating operation cycles.
Manufacturer:
https://www.partshnc.com/media/catalog/product/e/5/e50102.jpg

Product Overview:
Temperature monitoring in heating equipment requires a limit thermostat that responds to thermal conditions and controls the associated safety circuit. The HEATSTAR E50102 Limit Thermostat is an OEM safety control component designed for compatible heating equipment. It provides temperature-responsive switching to help regulate heater operation when the monitored temperature reaches the designated limit.

Temperature Monitoring:
The thermostat monitors thermal conditions within the heating assembly. Its sensing mechanism responds to temperature changes and initiates the corresponding switching action.

Safety Switching:
The limit control interrupts the associated electrical circuit when the specified temperature threshold is reached. This operation helps prevent continued heating beyond the designated operating limit.

Replacement Guidelines:
The HEATSTAR E50102 limit thermostat may require replacement if the safety switching function fails, temperature monitoring becomes inconsistent, or the heater experiences repeated unexplained shutdowns. When selecting a replacement, compare the original part number and equipment documentation to identify the required thermostat.

Common Signs of Failure:
Repeated unexpected heater shutdowns

Failure to activate the safety circuit

Inconsistent temperature response

Damaged thermostat terminals

Physical deterioration of the sensing component

Equipment Compatibility:
The HEATSTAR E50102 is an OEM limit thermostat intended for designated HEATSTAR heating equipment. Verify the original part number and heater model against the manufacturer's parts documentation to confirm compatibility before purchasing.

Technical Specifications:
Brand: HEATSTAR
Part Number: E50102
Product Type: Limit Thermostat

Write Your Own Review
You're reviewing:HEATSTAR E50102 Limit Thermostat
Your Rating
Customer Questions
What is the primary function of the HEATSTAR E50102 limit thermostat?

The E50102 monitors temperature conditions and provides high-limit safety control within the heater assembly.

How does the E50102 differ from a fan thermostat?

The E50102 serves as a limit thermostat, while a fan thermostat controls fan operation according to temperature conditions.

Is the E50102 identified as a safety thermostat?

Yes, the E50102 is identified as a safety or high-limit thermostat in HeatStar heater parts documentation.

Which component designation distinguishes the E50102 from other thermostat parts?

E50102 identifies the limit thermostat, distinguishing it from the separately listed E50101 fan thermostat.

What maintenance inspection is relevant to the E50102 limit thermostat?

During heater servicing, technicians can inspect the limit thermostat and its electrical connections as part of the heater's safety-control inspection.
