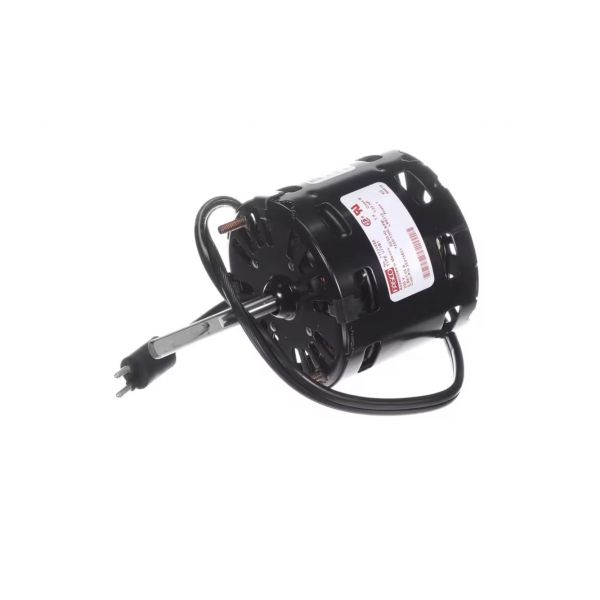

Heatcraft Refrigeration 25315601S 1/20HP Evaporator Motor 1800 RPM 230V

Be the first to review this product
Special Price $248.72 Regular Price $462.95
In stock
SKU
25315601S
The Heatcraft Refrigeration 25315601S Evaporator Motor is an air circulation component used to propel fan blades in evaporator units for cooling HVAC systems. It has a 1/20 horsepower motor operating, at 1800 RPM on a 230-volt power supply, which produces the rotational motion that turns the evaporator fan, allowing air to circulate in the cooling section by moving across the evaporator coil. It is attached to power circuit and fan assembly of the equipment with electrical leads. It is located in the evaporator, compartment and constantly passes, air throughout the coil to sustain consistent heat.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/5/25315601s.jpg

Specifications

  • Type: Evaporator Motor
  • Horsepower Rating: 1/20
  • Voltage Rating: 230V
  • Speed: 1800RPM
Write Your Own Review
You're reviewing:Heatcraft Refrigeration 25315601S 1/20HP Evaporator Motor 1800 RPM 230V
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 25315601S Evaporator Motor?

Regularly inspect the motor for dust, debris, or corrosion on terminals. Lubricate bearings if applicable and ensure proper mounting and alignment. Check wiring connections for security. Follow safety procedures when working with powered refrigeration components.

What are common issues with the Heatcraft Refrigeration 25315601S Evaporator Motor?

  • Motor fails to start.
  • Overheating during operation.
  • Unusual noise or vibration.
  • Loose or damaged wiring connections.

Installation Steps

Step 1: Turn off power to the refrigeration unit before beginning installation.

Step 2: Remove the evaporator cover or panel to access the old motor.

Step 3: Disconnect wiring and mounting hardware from the existing motor.

Step 4: Install the new motor, aligning the shaft and mounting points correctly.

Step 5: Reconnect wiring according to the motor specifications and secure all fasteners.

Step 6: Restore power and test the motor for proper rotation and operation.
