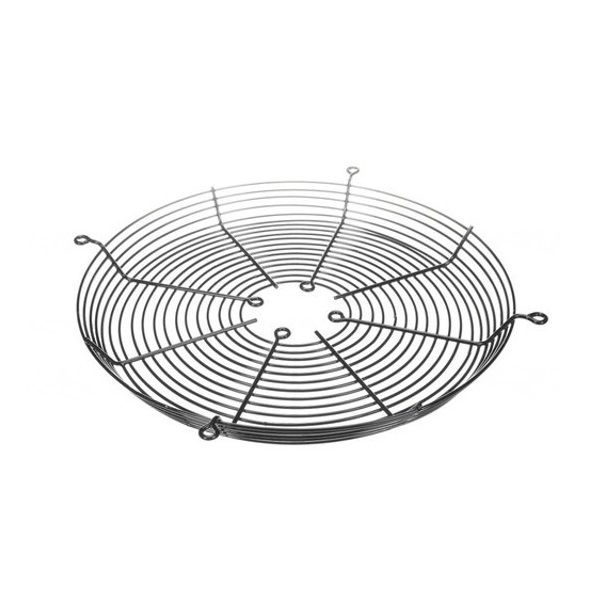

Heatcraft 23100901 Motor Mount Fan Guard 14"

Be the first to review this product
Special Price $69.73 Regular Price $141.95
In stock
SKU
23100901
The Heatcraft Refrigeration 23100901 Motor Mount Fan Guard is a circular-shaped protective part that is used to hold the fan motor in the HVAC systems. It is directly attached to the fan assembly keeping the motor in place and minimizing the exposure to the rotating fan blades. This guard is placed in the condenser and evaporator fan areas, and it assists in maintaining the stability of the airflow and the safety of operation. It is 14" in diameter, which fits the specifications of fans in terms of clearance and fit.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/3/23100901.jpg
Write Your Own Review
You're reviewing:Heatcraft 23100901 Motor Mount Fan Guard 14"
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Heatcraft 23100901 Fan Guard?

Regularly check the guard for dust, debris, and any signs of corrosion or bending. Ensure it is securely mounted and not interfering with the fan. Proper maintenance prevents fan damage, safety hazards, and ensures consistent airflow.

What are common issues with the Heatcraft 23100901 Fan Guard?

  • Loose or missing mounting hardware.
  • Bent or damaged guard.
  • Interference with fan rotation.
  • Corrosion or rust compromising stability.

Installation Steps

Step 1: Turn off and unplug the unit before beginning installation.

Step 2: Remove any existing fan guard if present.

Step 3: Position the new fan guard over the fan, aligning mounting holes with the motor mount.

Step 4: Secure using screws or clips provided, ensuring a snug fit.

Step 5: Verify the fan spins freely without touching the guard.

Step 6: Restore power and test fan operation safely.
