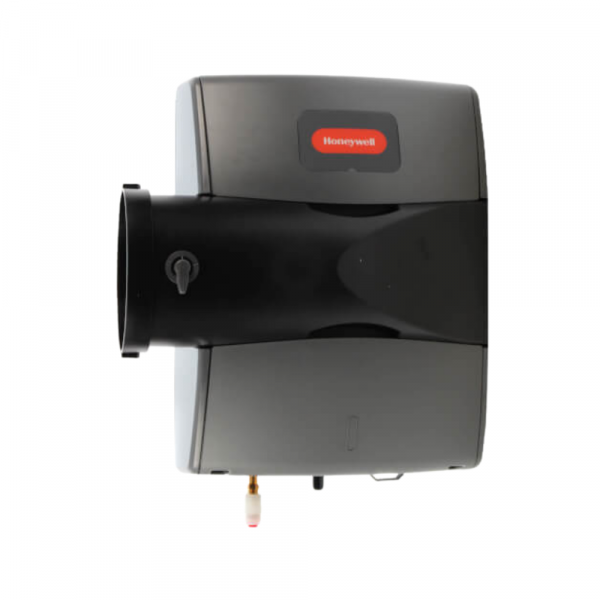

main product photo

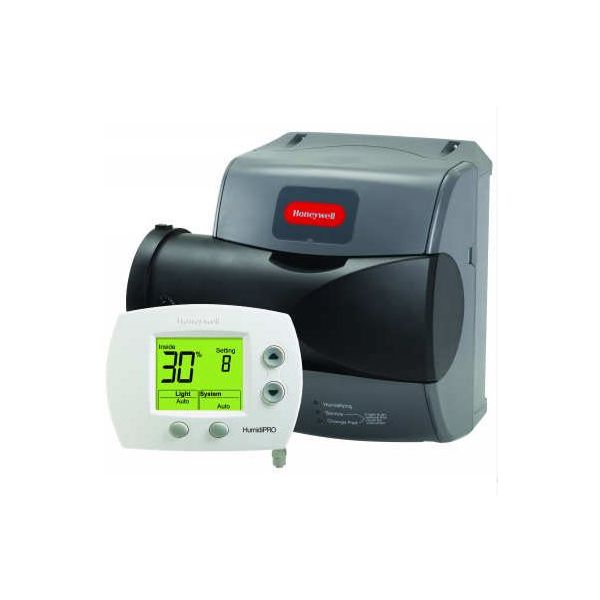

Resideo HE200A1000 Large Evaporative Bypass Humidifier 17 GPD

Be the first to review this product
Special Price $243.48 Regular Price $270.27
In stock
SKU
HE200A1000
The Resideo HE200A1000 Large Evaporative By-Pass Humidifier is a high efficiency equipment that adds moisture to indoor air to improve its quality. This flow through bypass humidifier is for larger households and commercial areas because it can humidify up to 17 gallons per day. It operates by drawing a moistened pad using which water is allowed to evaporate in the airstream and is disseminated to the area. This type has a compact gray design that blends in with current HVAC systems and runs on a 24 VAC power source for reliable performance. The unit operates at 0.417 A at 60 Hz and can manage static pressure up to 0.3" of water column.
Add to Wish List
Resideo Humidifier Parts,
Manufacturer:
https://www.partshnc.com/media/catalog/product/h/e/he200a1000_2.png

Specifications

  • Humidification Capacity: 0 to 17 Gallons
  • Humidifier Type: Bypass, Flow-Through
  • Color: Gray
  • Voltage: 24 VAC
  • Static Pressure: 0.3" WC
  • Current: 0.417 A
  • Frequency: 60 Hz

Product Overview:
Adds moisture to indoor air through an evaporative bypass humidification system. The Resideo HE200A1000 Large Evaporative Bypass Humidifier is an OEM indoor humidity-control component with a rated output of 17 gallons per day (GPD). Its evaporative bypass configuration supports whole-home humidification in HVAC systems designed for the corresponding humidifier arrangement.

Air Moisture Transfer:
Air moisture transfer occurs as circulating air moves through the humidification assembly and passes across the water-bearing evaporative surface. Contact between the moving airstream and the available moisture allows water to enter the air as vapor. The conditioned airstream then carries the added moisture through the distribution path. This function specifically describes the physical exchange between water and moving air within the humidification process.

Humidity Level Control:
Humidity level control governs the humidification demand according to the required moisture condition of the conditioned space. The control process determines when additional humidity is called for and coordinates humidifier operation with that demand. This function specifically addresses the relationship between the desired indoor humidity condition and the humidification response, without describing how water physically enters or travels through the airstream.

Replacement Guidelines:
Replace the Resideo HE200A1000 Large Evaporative Bypass Humidifier 17 GPD when the existing humidifier has deteriorated, has been removed during service, or no longer provides adequate moisture delivery. Renew the humidifier during applicable maintenance or component replacement to restore the required humidification function and support proper moisture distribution through the air stream.

Common Signs of failure:
Moisture output drops below the expected level.

Humidity levels remain consistently low.

Water evaporation becomes noticeably reduced.

Air bypass fails to distribute moisture evenly.

Humidification response becomes intermittent or absent.

Equipment Compatibility:
The Resideo HE200A1000 Large Evaporative Bypass Humidifier 17 GPD is intended for HVAC equipment requiring evaporative bypass humidification. Its application depends on the associated air-handling and bypass airflow arrangement. Verify the HE200A1000 equipment model and manufacturer's parts documentation before ordering.

Technical Specifications:
Brand: Resideo
Part Number: HE200A1000
Product Type: Large Evaporative Bypass Humidifier
Capacity: 17 GPD

Reviews
Write Your Own Review
You're reviewing:Resideo HE200A1000 Large Evaporative Bypass Humidifier 17 GPD
Your Rating
Product Questions (5)
Customer Questions
What type of HVAC system is the Honeywell HE200A1000 humidifier designed for?

The HE200A1000 is designed for forced-air HVAC systems that require indoor humidification.

What should I check before selecting the HE200A1000 humidifier?

Verify the HVAC system configuration, installation requirements, and humidification capacity against the equipment documentation and the home's moisture-control needs.

What does the 17 GPD capacity mean for the HE200A1000?

The 17 gallons-per-day (GPD) rating identifies the humidifier's specified moisture output capacity.

What problems may indicate that a whole-house humidifier needs inspection?

Insufficient humidity, visible water leakage, or irregular humidifier operation may indicate a maintenance need or a problem requiring diagnosis.

What maintenance should be performed on the HE200A1000 humidifier?

Follow the manufacturer's service schedule and inspect the humidifier's water supply, evaporative components, and surrounding area for buildup, blockage, or leakage.
