main product photo

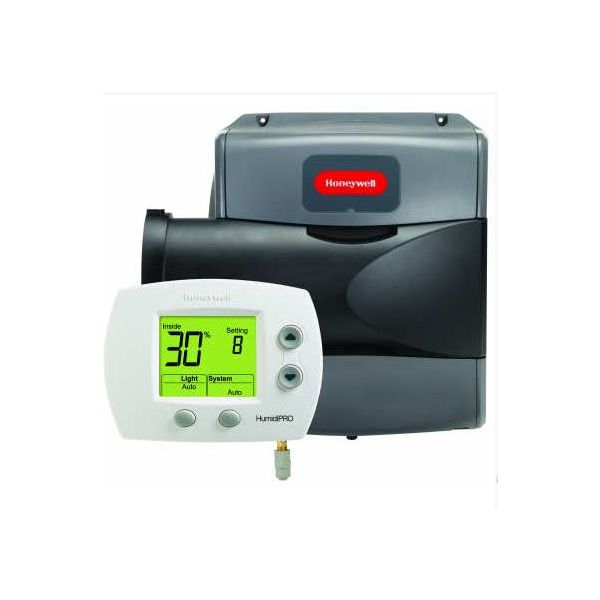

Resideo HE100A1000 Small Evaporative By-pass Humidifier 12 GPD

Be the first to review this product
Special Price $233.48 Regular Price $259.17
In stock
SKU
HE100A1000
The Resideo HE100A1000 Small Evaporative By-pass Humidifier is a specific model of a humidifier for central air systems which can be characterized as small, and efficient. This grey humidifier has a voltage of 24 VAC and frequency of 60 Hz and can produce up to 12 gallons of moisture daily making the quality of air in buildings better. Air warmed in the furnace is drawn, it is then passed through a moistened evaporator pad and then the humidified air is restored in the living area. It operates at a pressure of 0.3" of water column. The versatile and reliable device operates at a temperature of 34°F to 90°F to ensure that it works continuously in different making it an essential component of the heating and cooling system.
Add to Wish List
Resideo Humidifier Parts,
Manufacturer:
https://www.partshnc.com/media/catalog/product/h/e/he100a1000.jpg

Specifications

  • Voltage: 24 VAC
  • Pressure: 0.3" WC
  • Color: Gray
  • Frequency: 60 Hz
  • Temperature Range: 34°F to 90°F

Product Overview:
Introduces moisture into the circulating air of a central HVAC system through an evaporative bypass arrangement. The Resideo HE100A1000 Small Evaporative By-pass Humidifier 12 GPD is an OEM humidification component with a stated capacity of 12 gallons per day (GPD). Its bypass configuration directs HVAC airflow through the humidification section, supporting whole-home humidity control.

Evaporative Moisture Transfer:
An evaporative humidifier adds moisture by transferring water into moving air as the airstream passes through the humidification section. The bypass configuration directs HVAC airflow through this section, where moisture is introduced into the moving airstream. The GPD rating identifies the stated humidification capacity of the unit.

HVAC Airflow Integration:
Within a central HVAC system, the humidifier places moisture addition within the air-circulation path. Air passing through the humidification section incorporates the moisture before continuing through the HVAC airflow path toward the conditioned space. This integrates humidification with the existing central HVAC airstream rather than treating moisture addition as a separate air-circulation process.

Replacement Guidelines:
Replacement may be considered when the Resideo HE100A1000 Small Evaporative By-pass humidifier no longer provides the required moisture output or when deterioration affects normal operation. The replacement unit should match the required evaporative humidification configuration and applicable equipment requirements.

Common Failure Symptoms:

  • Reduced moisture delivery
  • Lower humidification output
  • Visible deterioration of the humidifier assembly
  • Noticeable decline in humidity control

Equipment Compatibility:
The Resideo HE100A1000 is intended for central HVAC applications requiring a small evaporative bypass humidifier. Verify the HVAC equipment model number, existing humidifier information, manufacturer documentation, and applicable replacement or superseded part numbers before purchasing.

Technical Specifications:
Brand: Resideo
Model: HE100A1000
Product Type: Small Evaporative By-pass Humidifier
Humidification Capacity: 12 GPD, 46 Liters Per Day Capacity

Reviews
Write Your Own Review
You're reviewing:Resideo HE100A1000 Small Evaporative By-pass Humidifier 12 GPD
Your Rating
Product Questions (5)
Customer Questions
What is the Resideo HE100A1000 humidifier used for?

It adds moisture to indoor air through an evaporative humidification process.

How does a bypass humidifier operate?

It uses airflow through a bypass arrangement to support moisture transfer from the wetted humidifier pad into the air.

What does the 12 GPD capacity indicate?

It represents the humidifier’s stated capacity of 12 gallons of moisture output per day.

What signs may indicate a humidifier needs maintenance?

Mineral buildup, a deteriorated pad, or reduced moisture output may indicate that inspection or servicing is needed.

How can I verify the correct HE100A1000 humidifier configuration?

Check the equipment documentation and confirm the small-size classification, bypass arrangement, evaporative operation, and 12 GPD capacity.
