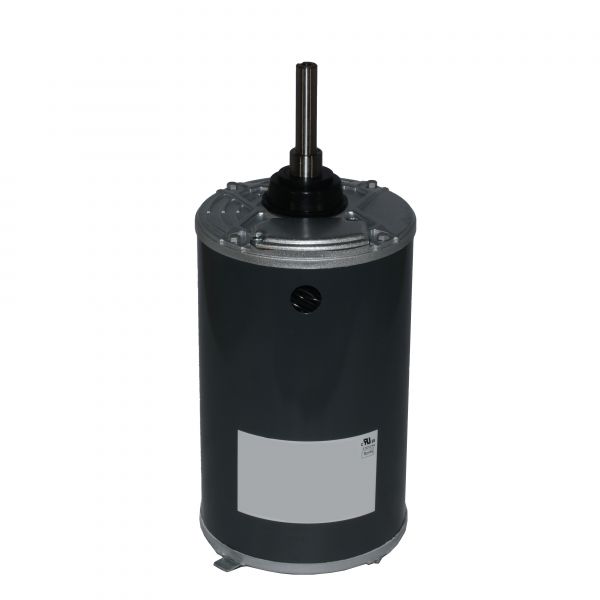

Condenser fan assemblies use dedicated motors to provide the rotational drive required for air movement. The Carrier HD52AZ002 is a condenser fan motor that supplies rotational output to the connected condenser fan. This mechanical output supports the fan's intended operation within the condenser assembly.
Motor Electrical and Mechanical Operation:
The motor uses electrical input to produce mechanical shaft rotation through its internal motor assembly. This rotating output is transferred through the shaft to the connected condenser fan, supplying the mechanical movement required during operation.
Condenser Fan Mechanical Drive:
The motor's shaft provides the rotational input required by the condenser fan assembly. The connection between the motor shaft and fan allows the motor's mechanical output to be transferred into the fan's rotating movement during operation.
Replacement Guidelines:
Replacement may be appropriate when the existing Carrier HD52AZ002 develops unstable shaft rotation or can no longer maintain the required condenser fan drive. Before ordering, compare the existing part number with the required condenser fan configuration and specified motor characteristics.
Common Failure Symptoms:
- Condenser fan fails to start
- Fan rotation becomes slow or inconsistent
- Motor overheats during condenser operation
- Fan stops intermittently during a cooling cycle
- Unusual motor noise develops during operation
Equipment Compatibility:
The Carrier HD52AZ002 Condenser Fan Motor should be selected for applications requiring the corresponding motor configuration. Before purchasing, confirm the existing part number, condenser fan arrangement, 2 HP rating, 1140 RPM speed, 56Y frame, 3-phase configuration, and 208-230/460V requirement.
Technical Specifications:
Part Identification:
Brand: Carrier
Part Number: HD52AZ002
Product Type: Condenser Fan Motor
Electrical:
Voltage: 208-230/460V
Phase: 3-Phase
Mechanical:
Horsepower: 2 HP
Speed: 1140 RPM
Frame: 56Y
