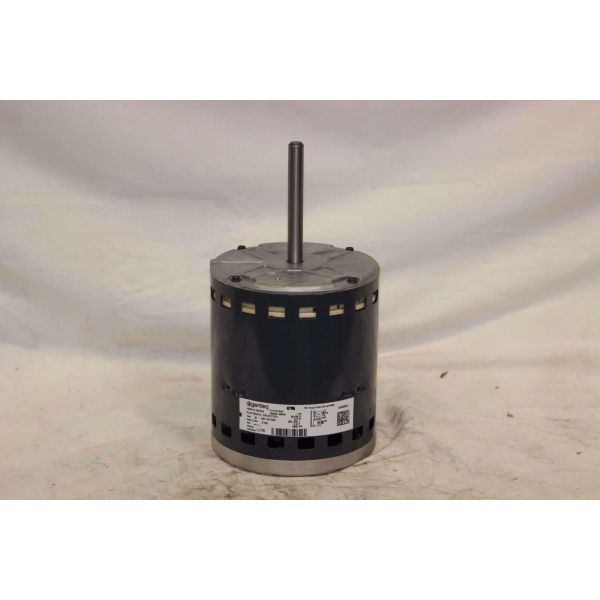

Carrier HC45AQ230 208-230V 1Phase 3/4 HP 1075 RPM 3 Speed

Special Price $364.31 Regular Price $404.38
In stock
SKU
HC45AQ230
The Carrier HC45AQ230 is a Blower Motor Work Horse, meant for HVAC systems. This is a single-phase, 3/4 horsepower motor designed, 208-230 volts and 60 Hertz. However, this is a powerful machine with a small frame. Ball bearings are used to guarantee the stability and quietness of the machine, and the PSC technology makes the motor efficient. The real magic is in its capacity to produce three speeds with a maximum RPM of 1075 in the counter-clockwise direction. This equipment is central to counter-fans or blowers to produce fresh air circulation across the system for comfort.
Blower Motor Parts,
Manufacturer:
https://www.partshnc.com/media/catalog/product/0/0/0018240_0.jpg

Specifications

  • Length: 5.8 "
  • Width: 6.5 "
  • Height: 9.8 "
  • Basis Of Rotation View: Lead End
  • Bearing Type: Ball
  • Motor HP: 3/4 HP
  • Frequency: 60 Hz
  • Duty: Continuous (S1)
  • Full Load Amps: 5.1 Amps
  • Motor Type: PSC (Permanent Split Capacitor)
  • NEMA Frame: 48
  • Number of Speeds: 1
  • Number of Phases: 1
  • RPM: 1075
  • Rotation: Counter Clockwise (CCW)
  • Voltage: 208V-230V
  • Weight:17.15lbs

34HP 208v 1075RPM MOTOR for Carrier PART# HC45AQ230

Write Your Own Review
You're reviewing:Carrier HC45AQ230 208-230V 1Phase 3/4 HP 1075 RPM 3 Speed
Your Rating
Customer Questions
How to install an expansion valve for refrigeration?

Thermostatic expansion valves are an integral part of your refrigeration unit. They are responsible for ensuring the right dosage of refrigerant is entering the cooling coil to ensure maximum efficiency in the air conditioning of the system.    These special expansion valves come with a temperature sensor that is mounted at the end of the evaporator coil. They incorporate signals from this sensor to maintain the required temperature of the HVAC system. The thermostatic expansion valve works like a precision device that can regulate the measurements of the liquid refrigerant that flows into the evaporator of your system. This regulation in the flow of the refrigerant is essential to prevent the reverse flow of the refrigerant into the compressor of your system.    Through this mechanism, the thermostatic expansion valve successfully separates the high and low pressure sides of the refrigeration/air conditioning system. The liquid refrigerant enters the expansion ...
