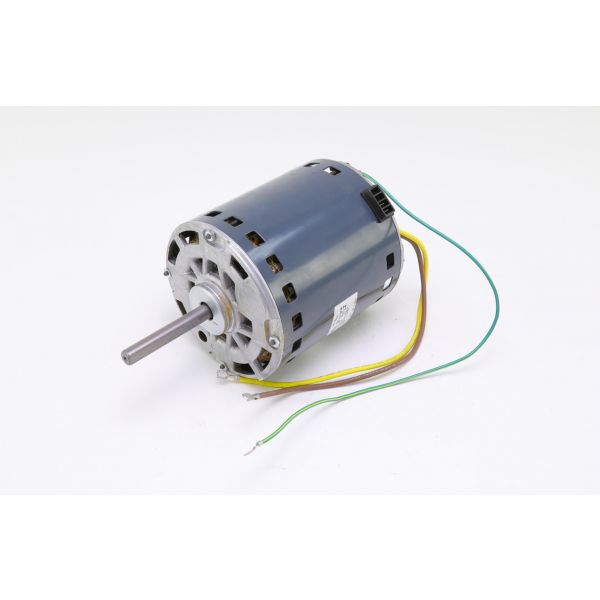

Carrier HC41SE245 Motor 1/3HP 208/230V 850 RPM 2 Speed
Special Price $352.39 Regular Price $391.15
In stock
SKU
HC41SE245
The Carrier HC41SE245 is a 1/3 horsepower, two-speed PSC motor designed for use in Carrier HVAC systems. It operates on a standard voltage of 208-230V at 60 Hz and delivers a reliable speed of 850 RPM at both speeds. Measuring 5.4 x 5.4 x 9.9" and weighing around 16.7 lbs, this motor is built for durability with sleeve bearings and a 7.5 MFD capacitor for optimal performance. PSC motors are known for their efficiency and reliability in HVAC applications. By providing reliable power to various components within the Carrier HVAC system, the HC41SE245 motor ensures efficient operation and optimal climate control. The two-speed functionality allows the HVAC system to adjust fan speed based on heating or cooling needs, further enhancing comfort and efficiency.
Manufacturer:
Specifications
- Length: 5.4 "
- Width: 5.4 "
- Height: 9.9 "
- Bearing Type: Sleeve
- Capacitor: 7.5 MFD
- Frequency: 60 Hz
- Duty: Continuous (S1)
- Full Load Amps: 3.5A
- Motor HP: 1/3 HP
- Motor Type: PSC (Permanent Split Capacitor)
- NEMA Frame: 48
- Speeds: 2 (Two)
- Phases: 1
- RPM: 850
- Rotation: Counter Clockwise (CCW)
- Shaft Diameter: 0.5 "
- Shaft Length: 3 "
- Voltage: 208V-230V
- Weight: 16.73lbs
