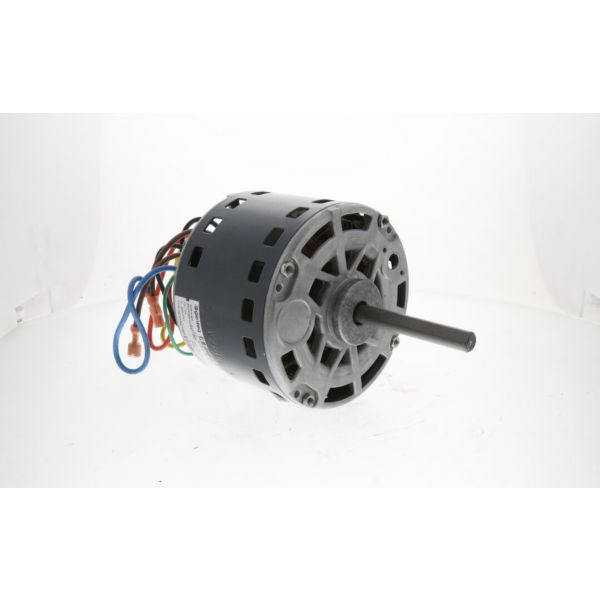

Carrier HC41AE198 Direct Drive Blower Motor 208-230V 1Phase 1/3 HP 1075 RPM 3 Speed
Special Price $329.90 Regular Price $366.19
In stock
SKU
HC41AE198
The Carrier HC41AE198 Drive Blower Motor is used in HVAC systems. This is a single-phase motor with 1/3 horsepower and a voltage of 208-230 volts and the airflow produced is at 1075 RPM. The Permanent Split Capacitor Motor design is reliable and efficient at 60 Hz. It is a vertical shaft mounted, this fan is for the furnaces and air handlers. Sleeve bearings make it easy to operate the motor while the open motor enclosure facilitates heat dissipation. More essential, this has a multi-speed function, which means you can control the airflow according to the heating or cooling requirements.
Manufacturer:
Specifications
- Length: 5.7 "
- Width: 5.7 "
- Height: 8.5 "
- Bearing Type: Sleeve
- Frequency: 60 Hz
- Duty: Continuous (S1)
- Full Load Amps: 2.4A
- Insulation Class: B
- Motor Enclosure: Open
- Motor HP: 1/3 HP
- Motor Type: PSC (Permanent Split Capacitor)
- Mounting Type: Verticle Shaft Down
- NEMA Frame: 48
- Number of Speeds: 1 Speed
- Number of Phases: 1 Phase
- RPM: 1075
- Rotation: Counter Clockwise (CCW)
- Shaft Diameter: 0.5 "
- Shaft Length: 1-12 "
- Voltage: 208V-230V
- Weight:11.98lbs
