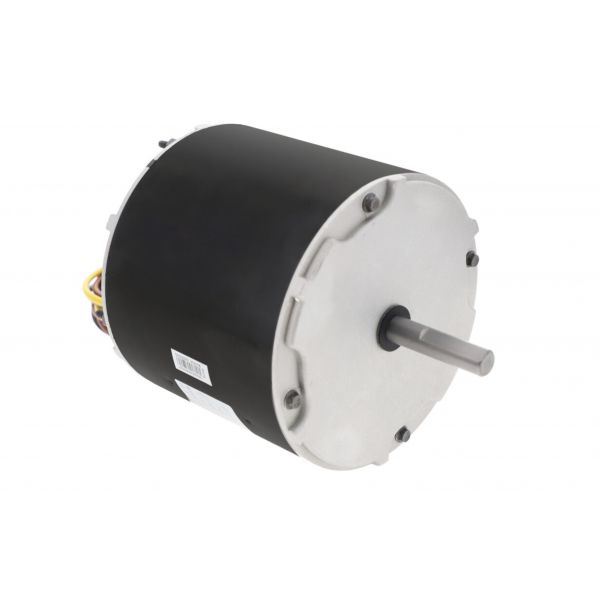

Carrier HC39GE480A 1/4 HP Fan Motor 900/1100 RPM 50/60Hz 400/460V 1-Phase

Be the first to review this product
Special Price $289.27 Regular Price $372.33
In stock
SKU
HC39GE480A

The Carrier HC39GE480A is a condenser fan motor specifically designed for air conditioners and heat pumps. It's a crucial component that powers the condenser fan, a large blade that spins rapidly. This fan draws air across the outdoor condenser unit's coils. Here's the magic: as the air flows through the hot coils, it absorbs heat from the refrigerant, which has just completed its cooling cycle inside. The now-warmed air is then expelled by the fan. This continuous cycle of drawing in cool air and expelling hot air is essential for the efficient operation of your HVAC system. The Carrier HC39GE480A is a single-phase motor, compatible with both 60Hz and 50Hz electrical grids, making it adaptable to various regions. With a horsepower rating of 1/4, it provides enough power to efficiently spin the condenser fan at 1100 RPM, ensuring optimal airflow for heat removal. Weighing approximately 16 pounds, it's a manageable size for servicing HVAC systems. By efficiently expelling heat from the refrigerant, the Carrier HC39GE480A condenser fan motor helps your HVAC system maintain proper cooling function. This translates to a comfortable living environment and potentially lower energy bills due to efficient system operation.

Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/h/c/hc39ge480a-carrier_partshnc.jpg

Specifications

  • Voltage/Electrical: 460V
  • RPM (Revolutions Per Minute): 1100 RPM
  • Horsepower(HP): 1/4HP
  • Frequency: 60/50Hz
  • Weight: 16lbs

Fan assemblies rely on a dedicated motor to provide the rotational drive needed for operation. The Carrier HC39GE480A supplies mechanical rotation to the connected fan assembly, allowing the fan to perform its intended air-moving function during operation. Its role is to provide the motor-driven movement required within the associated Carrier HVAC assembly.

Dual-Speed Operation:
The motor provides two defined operating speeds of 900 RPM and 1100 RPM, giving the connected fan two specified shaft-speed settings. This dual-speed configuration determines the rotational rate available during operation, while the 1/4 HP rating establishes the motor's specified mechanical power capacity for driving the fan.

Electrical Characteristics:
Operation is specified for a 400/460V, 1-phase, 50/60Hz electrical supply. The voltage rating defines the required electrical operating range, while the 1-phase configuration and 50/60Hz frequency describe the motor's specified electrical supply characteristics.

Replacement Guidelines:
Replacement may be appropriate when the motor develops persistent mechanical output deterioration or when it can no longer maintain dependable operation at its specified speed settings. Before ordering, compare the existing part number with the applicable equipment requirements and verified specifications.

Common Failure Symptoms:

  • Motor fails to start
  • Intermittent fan operation
  • Irregular shaft rotation
  • Unusual motor noise
  • Excessive vibration

Equipment Compatibility:
The Carrier HC39GE480A Fan Motor is associated with equipment models 38AUQB25A0P60A1C0, 38AUDC16A0M10A0C0, and 38AUDB16A0C60A0A0. Before installation, compare the existing part number and applicable motor configuration with the requirements of the connected equipment.

Technical Specifications:
Part Identification:
Brand: Carrier
Part Number: HC39GE480A
Product Type: Fan Motor

Electrical:
Voltage: 400/460V
Phase: 1-Phase
Frequency: 50/60Hz

Mechanical:
Horsepower: 1/4 HP
Speed: 900/1100 RPM

Reviews
Write Your Own Review
You're reviewing:Carrier HC39GE480A 1/4 HP Fan Motor 900/1100 RPM 50/60Hz 400/460V 1-Phase
Your Rating
Product Questions (5)
Customer Questions
What is the Carrier HC39GE480A?

The Carrier HC39GE480A is a fan motor that provides rotational drive for a connected fan assembly.

What is the HC39GE480A used for?

It supplies the mechanical rotation required for the associated fan to perform its air-moving function within the Carrier assembly.

Which Carrier equipment models are associated with the HC39GE480A?

The listed equipment models are 38AUQB25A0P60A1C0, 38AUDC16A0M10A0C0, and 38AUDB16A0C60A0A0.

Can the HC39GE480A be used in another Carrier fan application?

Not automatically. The specific equipment model and required motor configuration should be verified before using the motor in another application.

What should I verify before ordering the HC39GE480A?

Verify the existing HC39GE480A part number against the original equipment documentation and confirm the required motor configuration and application requirements.
