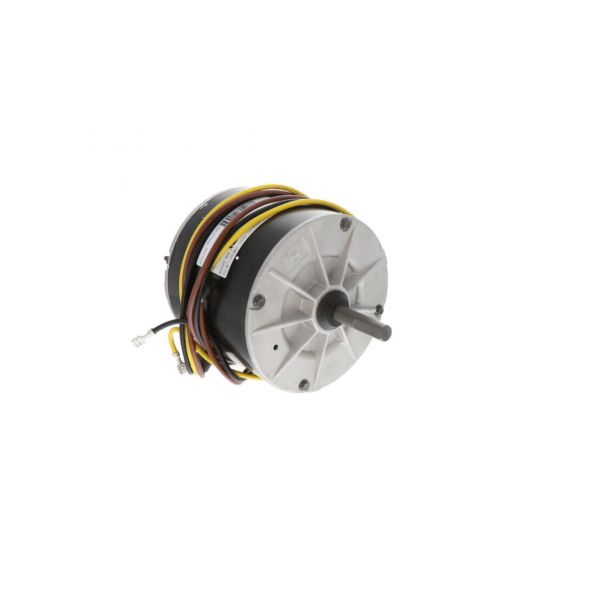

Carrier HB39GQ230 48 Motor 1/4HP 208-230V 1100RPM
The Carrier HB39GQ230 is a replacement condenser fan motor for HVAC systems. It works by driving a fan blade, which pulls air through the condenser coils in an air conditioner or heat pump. The condenser coils are located outdoors and hot refrigerant gas passes through them. The fan circulates air over the coils, which removes heat from the refrigerant, transferring it to the outside air. This cooler refrigerant is then circulated back indoors to cool your home. The Carrier HB39GQ230 is a 1/4 horsepower motor with a rotation speed of 1110 RPM. It operates on a standard 208-230 volt, 60 Hz electrical supply. This motor is designed for use in a variety of Carrier brand HVAC equipment, including furnaces and air handlers. A properly functioning blower motor is essential for efficient operation of your HVAC system, ensuring proper air circulation and heat transfer, which translates into efficient cooling and comfortable indoor temperatures.
Specifications
- Voltage/Electrical: 208-230V
- RPM (Revolutions Per Minute): 1110 RPM
- Horsepower(HP): 1/4HP
- Frequency: 60Hz
- Weight: 15.00lbs
